WA-97
FUNCTIONS
RATINGS

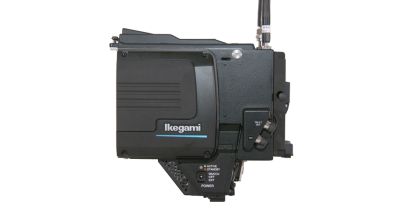

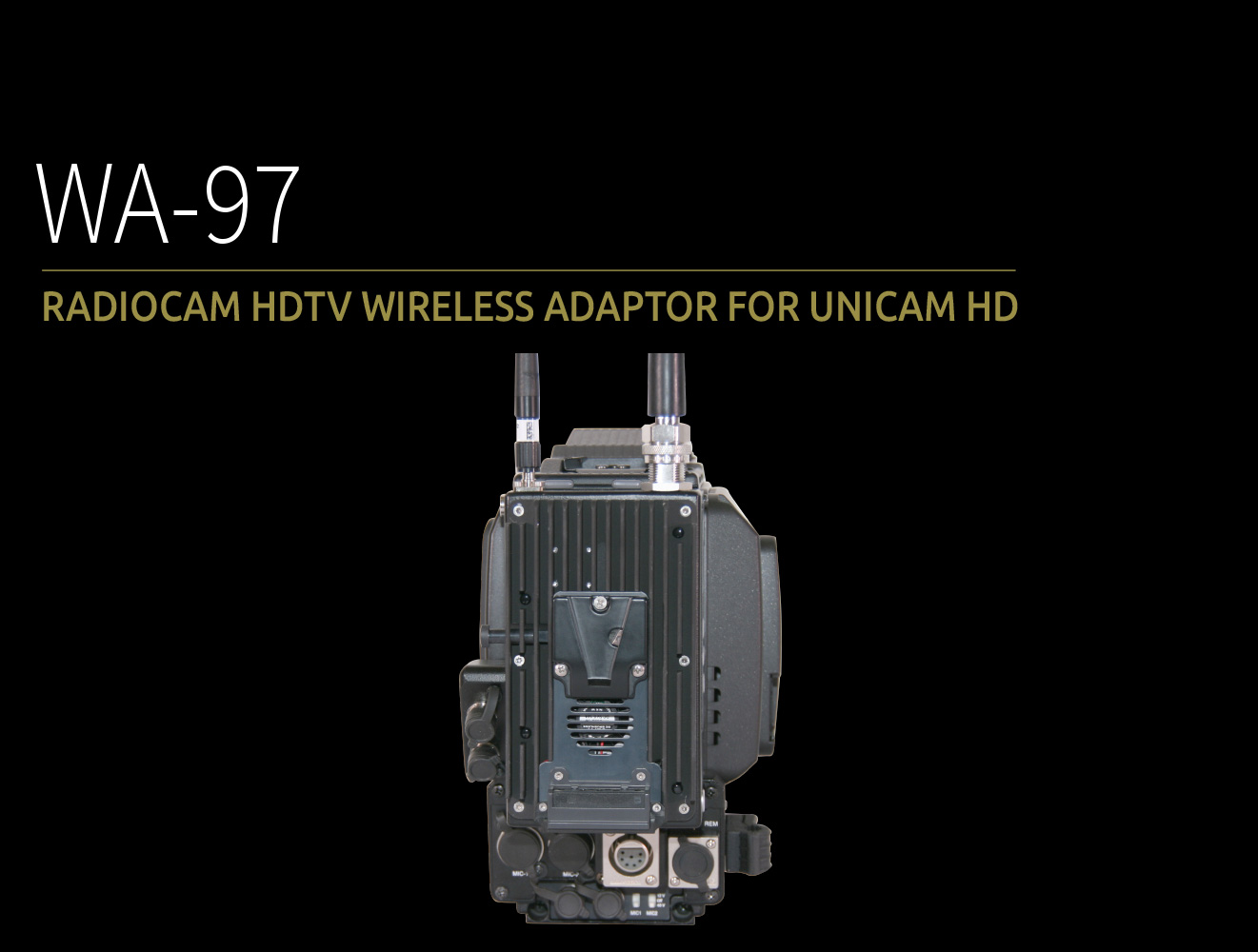

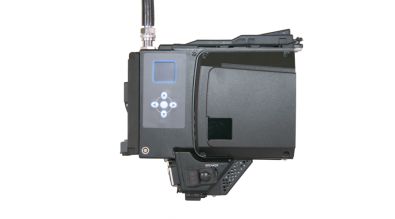

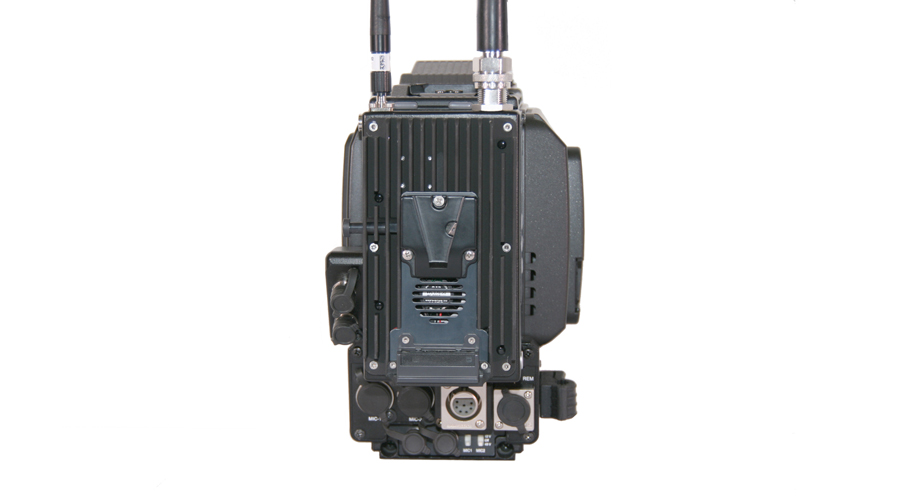

WA-97 is a full integrated wireless camera adaptor for Unicam HD. COFDM technology and Diversity reception enables multi-path free, stable & reliable communication. Bi-directional remote control communication ensures complete and rugged remote operation. Genlock junction between receiveing-basestation and camera head ensures a steady and low latency at any time. Optional build in hassle free 2-Way intercommunication possible.

  • DVBT compliant, COFDM 2k Standard
  • MPEG2 4:2:2P@ML/HL - H.264 optional
  • Low latency
  • Genlock transmission
  • Full remote control
You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: broadcast@ikegami.de
Contact Form




up


DIVERSITY RECEIVING SYSTEM

BSW-970 Wireless CCU utilises 2-way diversity combining technology for optimal COFDM performance. 6-way system is available as option.



PRE-SETTABLE TRANSMISSION FREQUENCY AND MODULATION MODE

The transmission frequency and modulation mode can be pre-set or programmable. It enables to select parameters best suitable to operation environment.



LOW-DELAY TRANSMISSION (30ms OR LESS)

WA-97 system provides low-delay transmission (30ms or less):

up

RATINGS / PERFORMANCE WA-97
Applicable Cameras HDK-97ARRI, HDK-97A/C, HDK-79GX & HDK-55
Transmission Frequency 1.95 GHz - 2.65 GHz, 3.5 / 5 / 7 GHz band optional
EIRP Selectable output power 10 - 100 - 400 mW as
standard. Different power radiation upon request.
Encoding MPEG-2 SP@HL 4:2:2, H.264 optional
Modulation COFDM, DVB-T (8 MHz, 2 k Mode) QPSK/16 QAM/64 QAM, Guard interval
Transmission Range 500 m with standard setup and components
Remote Control Receiver UHF (433 / 434 MHz or 455 / 465 MHz), other bands upon request
Intercom Receiver Red on air tally - Green flashing warning tally
Tally W 125 x H 270 x D 337 mm
Battery Clip IDX V-Mount, different mounts on request
Weight Approx. 9 kg (with HDK-97A Head)
