VFL-P700
RATINGS

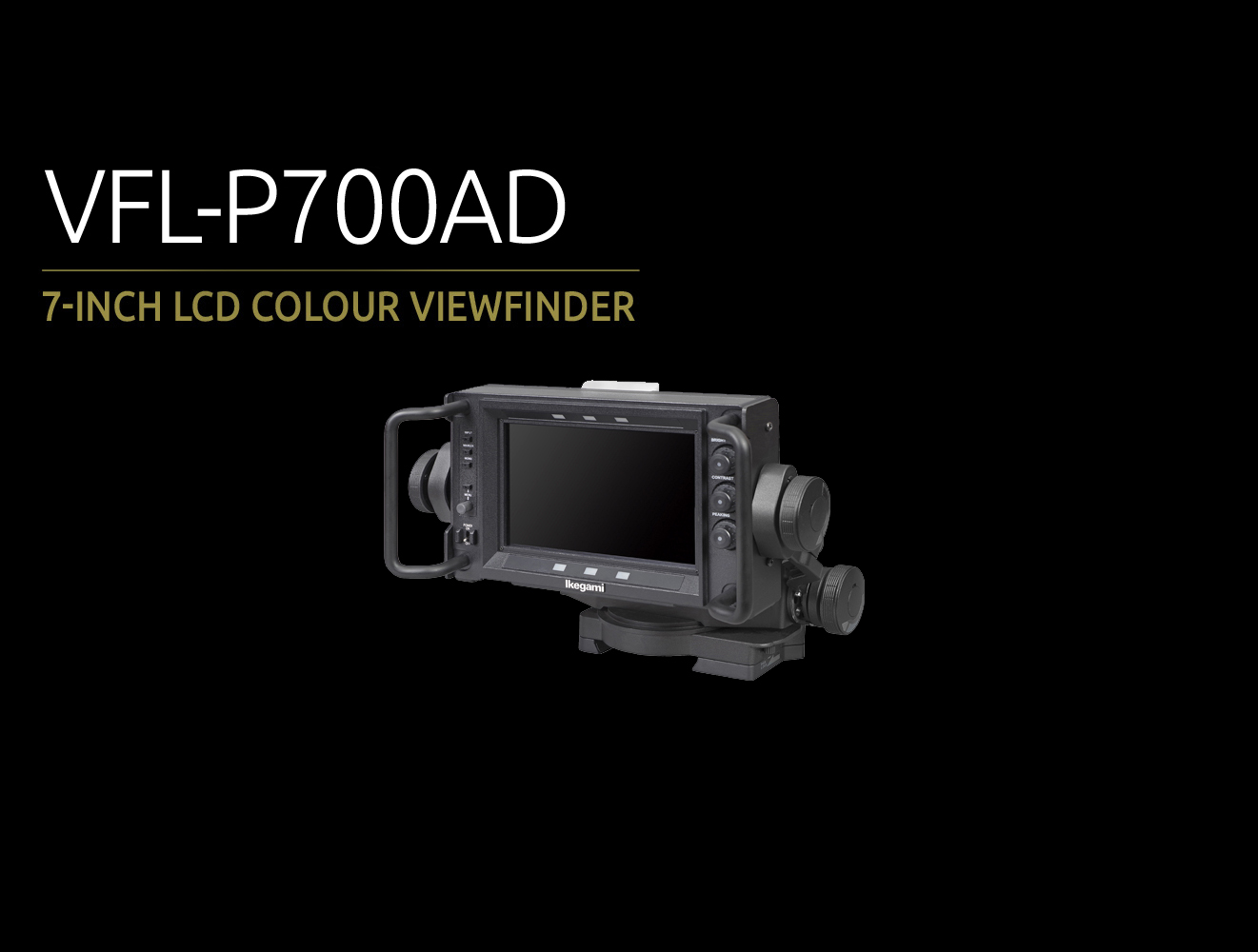

VFL-P700AD is a 7-inch native HD LCD viewfinder with digital and analog connectivity, designed for use with cameras such as the UNICAM XE series and UNICAM HD series. With the high performance LCD panel, the VFL-P700AD is the ideal viewfinder for both indoor and outdoor operations. The VFL-P700AD studio viewfinder comes delivered in 4 different pre-configured packages to meet any budget and production requirement:

Pack-S: the standard attachment kit with basic operability.

Pack A: the advanced attachment kit with wider adjustment range (for the portable camera UHK-X700/-X600 and HDK-X500).

Pack B: the advanced attachment kit with wider adjustment range (for the system expander SE-U430).

Pack C: the advanced attachment kit with wider adjustment range (for the studio heads UHK-X750/-X650).

  • 1920 x 1080 Native HD LCD Panel
  • Digital and analog Interface
  • Wide viewing angle
  • Multi-Format Support
  • Embedded Audio Level Meter
  • Vectroscope / Waveform Display
  • 3G/HD-SDI input / output
  • Various Display Marker
You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: broadcast@ikegami.de
Contact Form




up

RATINGS / PERFORMANCE VFL-P700AD
Power Supply 12V DC (10 to 16V DC)
Power Consumption 16 W
Ambient Humidity 30% to 85% (non-condensing)
Dimensions / Weight W 232 x H 150 x D 72mm -Approx. 1.1 kg/2.4 lbs (body only)
Input Signals Camera Signal: Digital 1x; Analog YPbPr x1
External Signal: 3G/HD-SDI BNC x1
Tally Input TALLY IN 1: G/R - TALLY IN R
Resolution H 1920 x V 1080 dots
Screen 151x85mm LCD
Colour 16.7 Million
Angle of Visibility Vertical 160° and horizontal 160°
