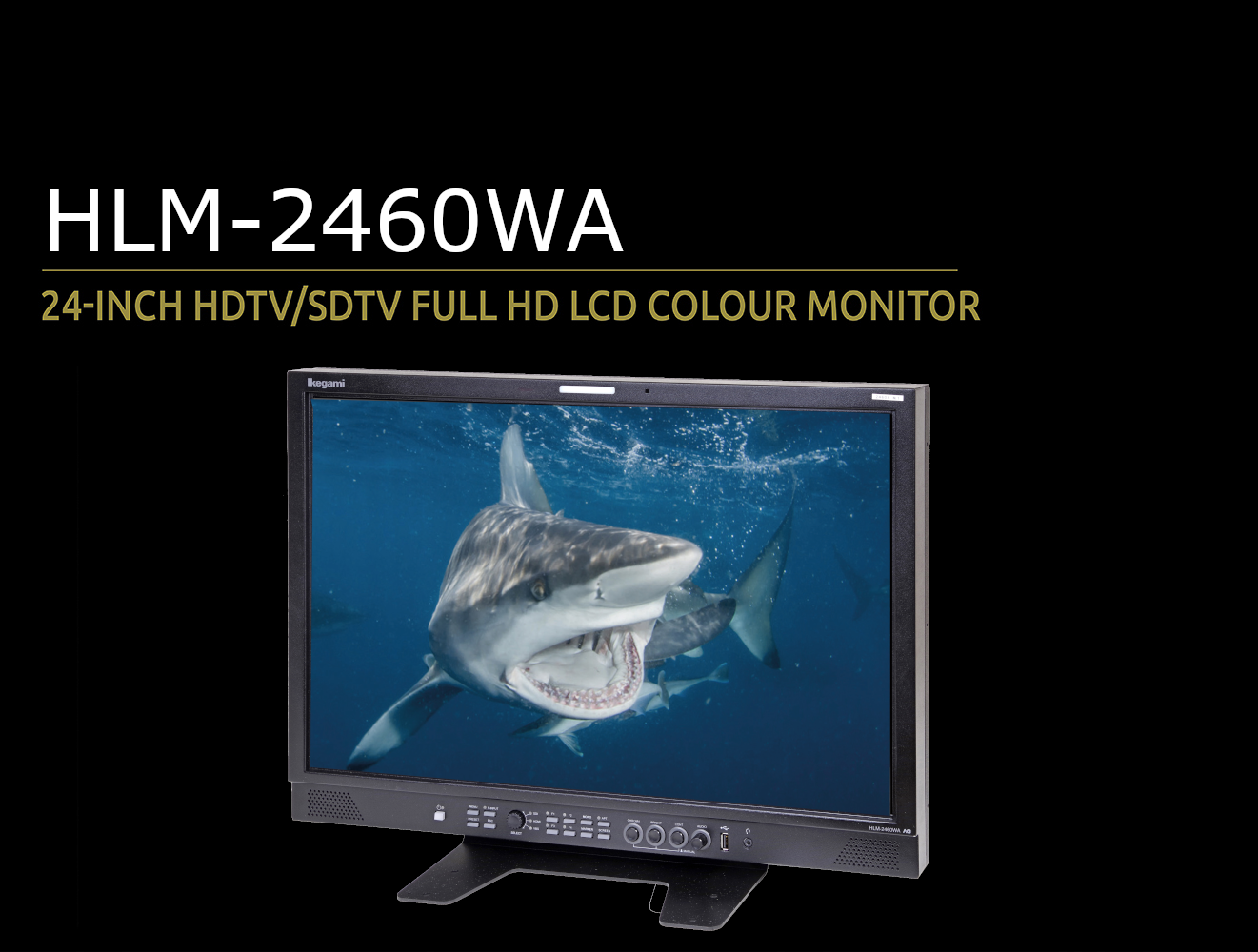

HLM-2460WA [NEW]

Building on the renowned features and performance of its predecessor, the HLM-2460WA reproduces more accurate dynamics of the source images thanks to a newly-developed LCD panel with an impressive 1800:1 contrast ratio. Seamless tally integration via Ethernet is made possible by the support of the TSL V5.0 protocol. The HLM-2460WA fits into various broadcast workflow applications, including editing suites where a computer-friendly WUXGA display resolution is preferred, as well as monitor walls, among others.

By employing a Full 1920×1200 pixel LCD panel which has wide viewing angle, high brightness, high contrast, fast motion response, and high quality colour reproduction, the HLM-2460W achieves real pixel allocation without resizing. Its superb gradation characteristics also make it ideal for a wide range of broadcast applications, including use in monitor walls.

Convenient features such as Picture-In-Picture, Side-By-Side Video, Audio Meters, User Markers and R/G/Y Tally make the Ikegami HLM monitor series the ideal companion for broadcast productions.

The 60 series Monitors support HDR (High Dynamic Range) EOTF tables of HLG1, HLG2 and S-Log3 as an option in addition to conventional Gamma.

  • High Performance Liquid Crystal Panel
  • Compatibility with embedded Audio
  • Built-in Marker Function
  • User Marker Display Function
  • Shadow Function
  • Remote Control via Ethernet or RS-485
  • Various built-in Test Signals
  • Waveform Monitor/Vectorscope Display Functions
  • Timecode Display Function
  • 2-picture Split Display & Picture-In-Picture Mode
  • Dot-by-Dot Display Function
  • Auto Setup with supported probes (Konica Minolta CA-310/-410, Klein Optical Instruments INC K10-A, Jeti Technische Instrumente GmbH Specbos 1211-2)
  • 5.1ch Surround Down-Mix Output
  • Image & Test Signal MIX Functions
  • 2x/4x Zoom Function
  • IMD/UMD:TSL V3.1 & V5.0 Support
  • High Dynamic Range support (Factory-option)

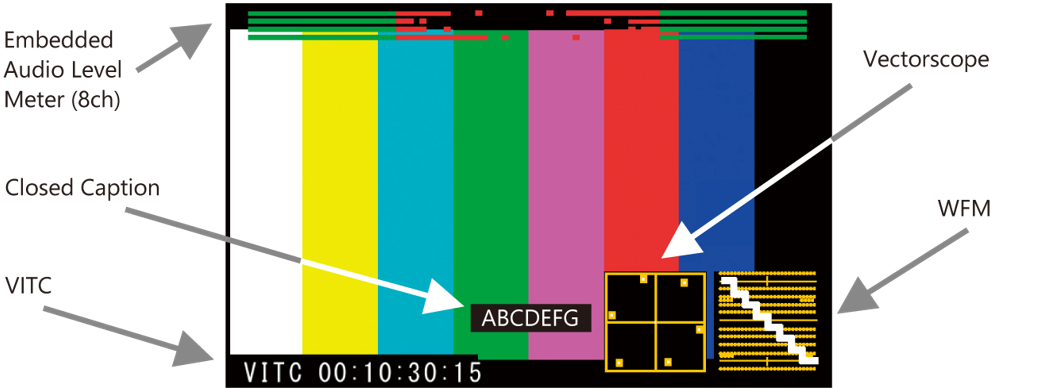

Loaded with Information Display

The HLM-2460WA supports dynamic and static UMD in addition to the features shown below.


User Defined Markers

A program production aid allowing up to 12 lines or boxes to be displayed. These can be drawn easily using a USB mouse.


Automatic Calibration (Optional)

Optional AWC software ensures consistent and accurate color reproduction over time. By acquiring real-time measurement data via a colorimeter, Windows-based software automatically aligns the R/G/B gain to exhibit the correct white balance.

Compatible Colorimeters:
Konica Minolta CA-310 / CA-410
JETI Specbos 1211-2
Klein Instruments K10-A

You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: broadcast@ikegami.de
Contact Form


Display panel IPS Type, 24-inch Full-HD / 1920×1200 / 16:10
Rack Mountable Space 9 RU Height, excl. desktop stand
Viewing angle 178°
Contrast Ratio 1800:1
Brightness 400 nits
Input signal Standard HD/SD-SDI, 3G-SDI: 2 Inputs, 2 Output (or 4 Inputs, 0 Output)
VBS: 1 Input/Output (TH)
Supported Formats (HDTV) 1080i/ 50, 59.94, 60
1080p/ 25,29.07, 30, 50, 59.94, 60
1080PsF/ 25, 29.97, 30
720P/ 25, 29.97, 30, 50, 59.94, 60
1035i/ 59.94, 60 (SDI only)
Supported Formats (SDTV) 480i/59.94, 576i/50, 480P/59.94, 576P/50 (HDMI only)
Input: Embedded Audio SDI & HDMI
Input: Analogue Audio Stereo Mini Jack
Output: Embedded Audio SDI
Output: Speaker 1W + 1W
Output: Headphones Stereo Mini Jack
Control: Ethernet Remote Control & Tally /UMD (TSL V5.0)
Control: RS-485 Tally / UMD (TSL V3.1)
Control: GPIO OK
Power Supply AC100-120V / AC200-240V / 59 W
Dimensions / Weight W 562 x H 398 x  D 86 mm / Approx 9.1 kg without stand
