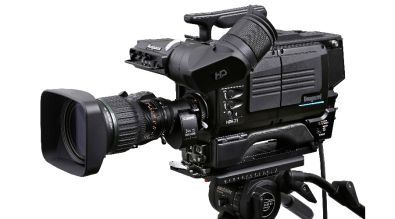

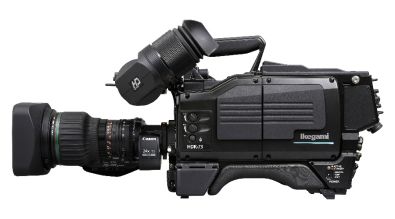

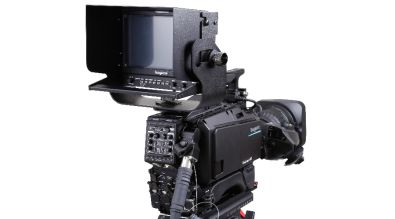

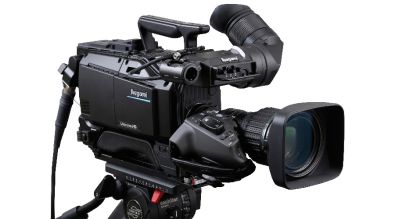

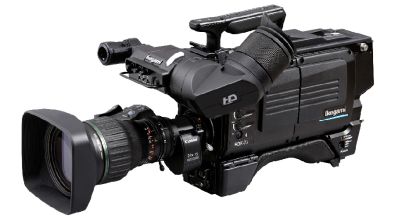

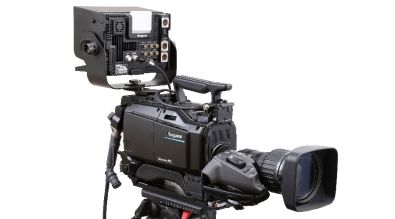

HDK-73
FUNCTIONS
RATINGS


The camera employs 2.6 Mega pixel 2/3-inch CMOS image sensors, achieving superior quality HDTV video with horizontal resolution of 1000TVL, SNR of 60dB or more, and sensitivity of F12.

  • Newly Developed High Performance Full HD 2/3-inch CMOS Sensors
  • Native Multi-format
  • Advanced Full Digital DSP
  • Lens Aberration Correction Function
  • Two HD-SDI Outputs from the Camera Head
  • Quick EZ Focus Assist Function
  • RET and QTV Channels
  • Advanced Digital Detail
  • Dockable Camera Body
  • Moire Reduction Filter (Factory Option)
  • HDR (High Dynamic Range)
You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: broadcast@ikegami.de
Contact Form



up


NEWLY DEVELOPED HIGH PERFORMANCE FULL HD 2/3-INCH CMOS SENSORS

The HDK-73 utilizes three 2/3-inch 2.6 mega pixel CMOS sensors, each capable of capturing full HD 1920 x 1080 resolution images and a wide dynamic range of more than 600%, and giving you an excellent sensitivity of F12 (60Hz) / F13 (50Hz) and high signal-to-noise ratio.



NATIVE MULTI-FORMAT

The CMOS sensors support progressive and interlace readout, natively supporting 1080i/59.94 and 1080i/50, as well as 720p/59.94 and 720p/50 HDTV formats.



ADVANCED FULL DIGITAL DSP

This camera is designed from the start base on End-to-End Digital made possible by using CMOS sensors, and includes the benefits of high bit quantization. Especially for the dark areas of the picture, the higher gradation for gamma and other circuits improves the reproduction, providing for more natural color in the shadow areas of the picture. Up to 38-bits are used within the DSP.



LENS ABERRATION CORRECTION FUNCTION

The Lens Aberration Correction function is incorporated for minimizing the loss of resolution and colored edges caused mainly by lens chromatic aberration.



TWO HD-SDI OUTPUTS FROM THE CAMERA HEAD

Two HD-SDI output signals (1.5G) are selectable between Camera, VF, RET and MON (monitor) for external monitoring at the camera head.



QUICK EZ FOCUS ASSIST FUNCTION

The Quick EZ Focus Assist function is a newly incorporated useful tool, providing very distinct enhancement to the viewfinder signal to enable the camera operator to make critical focus adjustment. The size of area, area color, edge color, and display time on the viewfinder are adjustable in the camera menu.



RET AND QTV CHANNELS

The featured base stations for the HDK-73 support four channels of return video (RET), two each for SDI and VBS. The selected channel can be output at the camera as an HD-SDI signal (upconverted if input in SDTV) and used to feed a talent monitor or other purpose. In addition there is a separate prompter channel (QTV) with SDTV input at the base station and SD output at the camera.



ADVANCED DIGITAL DETAIL

Both horizontal and vertical Detail Correction circuits for red, green and blue signals are independently and digitally processed. You can obtain the full resolution of a high quality picture with extremely low noise, even under low-light shooting conditions.



DOCKABLE CAMERA BODY

With a docking style camera body, either an FA (Fiber adapter), TA (Triax adapter) or CA (Camera adapter) can be mounted without any external cables depending on the use. A new lower profile and lower weight improve the maneuverability for shoulder use.



MOIRE REDUCTION FILTER (FACTORY OPTION)

An Anti-Moire Optical Low-Pass Filter can be fitted in the filter wheel to reduce unwanted moire video patterns when shooting a large LED screen, etc. * If this optional filter is ordered, one of the ND filters must be replaced.



HDR (HIGH DYNAMIC RANGE)

The camera provides an HDR function with its HLG (Hybrid Log Gamma) curve. It is now possible to shoot a scene with high dynamic range without losing gradation in the highlights.

up

RATINGS / PERFORMANCE HDK-73
Signal Format 1920 x 1080/59.94i, 50i
1280 x 720/59.94p, 50p
720 x 580/59.9i (NTSC), 720 x 576/50i (PAL) (Available from BSF-55/300 or BST-55)
Image Sensor 2/3-inch 2.6 million pixel CMOS sensors
Optical System 2/3-inch, R,G,B 3 prism, F1.4
Lens Mount B4 mount bayonet
Filter ND: 1/100%, 2/25%, 3/6.2%, 4/1.6%
ECC: A/3200K, B/4300K, C/6300K, D/8000K
Ambient Temperature -20°C to +45°C (-4°F to 113°F)
Relative Humidity 30% to 90% (Non-condensing)
Operating Voltage +11 to 16V
Weight Approx. 4.6kg (10.1lbs) (Camera Head + FA, excluding VF)
Dimensions W138.5 x H270 x D337mm (Camera Head + FA, excluding VF) (W5.5 x H10.62 x D13.25 inch)
Sensitivity F12 at 2000lx 1080/59.94i (Typical)
S/N Ratio 60dB or more (in 1080/59.94i)
Limiting Resolution 1000TV lines (in 1080/59.94i)
Electrical Shutter 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000
Modulation Depth 60% at 800TV lines (in 1080/59.94i)
Gamma OFF, 0.35, 0.4, 0.45, Hybrid Log Gamma
Gain -6dB, -3dB, 0dB, +3dB, +6dB, +9dB, +12dB, +18dB
Input Signals
External Sync Signal SYNC 0.6Vp-p ±6dB 75ohm BNC CN 1ch (BB/PS Signal)
* DTA-55 does not have external sync signal input in self-contained operation
Audio Signal -60dB to +4dB ( Variable) / -20dB (Fixed) XLR CN 2ch (600 ohm Balanced)
Intercom Signal XLR Type or 110 Type CN 2ch
Output Signals
Analog Video Signal R, G, B D-Sub CN 1ch (for System Expander)
HD-SDI Signal (with FA-55) Serial Digital 75 ohm BNC 1ch
HD-SDI Signal (with DTA-55) Serial Digital 75 ohm BNC 1ch
* The output signal should be fixed with main video signal in self-contained operation and set to RET signal in cable operation.
* The audio signal is not embedded.
Q-TV Signal FA-55/300: VBS signal, BNC type 1ch
DTA-55: SD-SDI signal, BNC type 1ch
AUX OUT Signal VBS signal, BNC type 1ch (QTV-1, QTV-2, or Main video selectable by menu)
* Available with FA-55/300 only
* QTV-2 cannot be selected if BS/CCU does not support 2 channels of QTV
MON Video Signal VF/RET/MON (MENU Selection) Serial Digital 75 ohm BNC 1ch
Intercom Signal 0 dBs 4ch (ENG/PROD/PGM1/PGM2) XLR Type or 110 Type CN
DC Output +12VDC 500mA (Max.), 4-pin type 1ch * Option for DTA-55
HDK-73 with BSF-55/BST-55/BSF-300
Operating Voltage AC100V to 120V / 200V to 240V ±10%
Power Consumption BSF-55: approx. 44W (BS only)
Power for HDK-73 and FA-55 without VF: approx. 70W
BST-55: approx. 64W (BS only)
Power for HDK-73 and DTA-55 without VF: approx. 99W
BSF-300: approx. 44W (BS only)
Power for HDK-73 and FA-300 without VF: approx. 70W
Ambient Temperature 0°C to +40°C (32°F to 104°F)
Relative Humidity 30% to 90% (Non-condensing)
Weight BSF-55: approx. 7kg (15.43 lbs)
BST-55: approx. 8kg (17.64 lbs)
BSF-300: approx. 7kg (15.43 lbs)
Dimensions W483 x H66.4 x D405 mm (W19.00 x H2.63 x D16.00 inch) (excluding protrusions)
Maximum Cable Distance FA-55/BSF-55: 2000m (6561.68ft) with 9.2mmφ Hybrid Fiber/Copper Cable
DTA-55/BST-55: 800m (2624.67ft) with Fujikura 8.8mmφ Triax Cable
FA-300/BSF-300: 300m (984.25ft) with 9.2mmφ Hybrid Fiber/Copper Cable
Input Signals
External Sync Signal HDTV: PS 1Vp-p 75ohm bridged or Tri-sync signal 0.6Vp-p ± 6dB 75ohm bridged connection
SDTV: VBS 1Vp-p 75ohm bridged connection or BBS 75ohm bridged connection
Return Video Signal HD-SDI/SD-SDI: 75ohm single end, 2ch (HD-SDI/SD-SDI selectable)
VBS: 75ohm single end, 2ch
Q-TV Signal BSF-55/300: VBS 75ohm single end, 1ch
BST-55: SD-SDI 75ohm single end, 1ch
Intercom (ENG/PROD) 4-wire or Clearcom or RTS
4-wire 0dBm 600 ohm 2ch
Clearcom -15dBs 200 ohm 2ch
RTS 0dBs 200 ohm 2ch
PGM (Program Sound) 0dBs 600 ohm/10k ohm switchable 2ch
Tally R/G 2chINCOM
Output Signals
Main Video Signal
HD-SDI/SD-SDI Signal HD-SDI (SMPTE292M) /SD-SDI (SMPTE259M) 75ohm BNC type 2ch 4 outputs (HD-SDI/SD-SDI selectable)
VBS Signal 1.0Vp-p 75ohm BNC type 1ch 2 outputs
PM Signal
HD-SDI/SD-SDI Signal Serial Digital 75ohm, 1ch (HD-SDI/SD-SDI selectable)
SDTV Analog Signal 1.0Vp-p 75ohm BNC type 1ch 1 output
WFM Signal
HD-SDI/SD-SDI Signal Serial Digital 75ohm, 1ch (HD-SDI/SD-SDI selectable)
Phase Reference Signal 75 ohm single end Analog 1ch
HDTV: Tri-Sync (0.6Vp-p) / SDTV: HV (2Vp-p) (MENU Selection)
Intercom (ENG/PROD) 4-wire or Clearcom or RTS
4-wire 0dBm 600 ohm 2ch
Clearcom -15dBs 200 ohm 2ch
RTS 0dBs 200 ohm 2ch
MIC 0dBs/+4dBs 2ch 2outputs Low impedance (MENU Selection)
Tally R/G 2ch
Data Trunk
* Option for camera side
RS-422 1ch * In case of the BST-55, the data trunk channel is not supported as standard
