ULE-217A
RATINGS


After many successful years of providing the broadcast industry with its cost-effective ULE-Monitor series, Ikegami now adds a brand new 31.5 Inch model to their current HD monitor line-up.

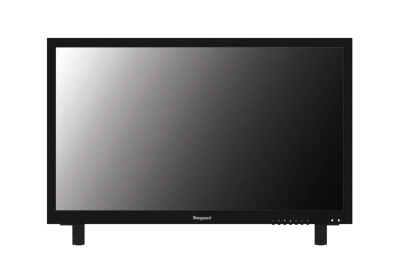

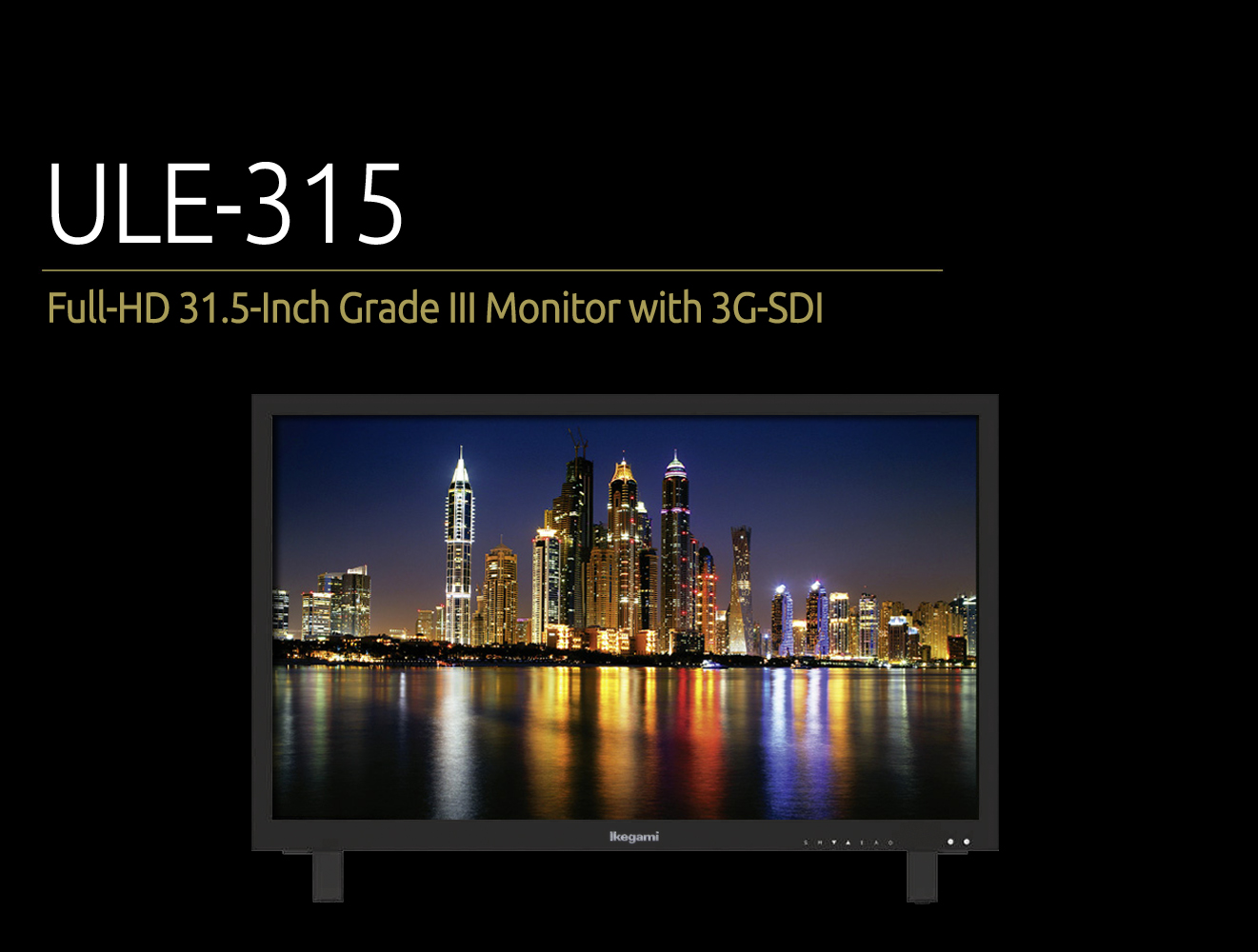

The ULE-315 is a professional multi-purpose Full-HD monitor with a variety of in- and outputs ranging from 3G/HD-SDI over HDMI and DVI to Analogue Component-Input.
Many convenient features such as 16 Audio-Meters for embedded audio, built-in speakers, markers and pixel-by-pixel mode are featured as standard. To ensure a precise and consistent image quality, the ULE-315 can be color calibrated with measuring probes of established manufacturers.

The low weight, compact dimensions and standardized VESA mounts make the ULE-315 the ideal solution for professional broadcast installations at a reasonable price.



  • Full-HD 3G multi-format LED monitor
  • 400 cd/m² Luminance, 4000:1 Contrast
  • 3G/HD-SDI input/output
  • HDMI, DVI, Component input
  • Support of various input formats incl. 2K/HD/SD
  • 16 Channels Audio-Meter for embedded audio
  • Built-in loudspeakers
  • RS-422 (RJ45) interface
  • Support of external calibration probes
  • Markers / Safety Area / Corner
  • Blue / Mono Mode
  • Zero Scan / Overscan / Pixel-by-Pixel
You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: broadcast@ikegami.de
Contact Form



up

RATINGS / PERFORMANCE ULE-315
LCD Size 31.5-inch
Pixel Pitch (mm) 0.3637mm x 0.3637mm
Brightness 400 cd/m²
Contrast Ratio 4000:1
Color Depth 16.7M (8 Bit)
Viewing Angle (H/V) 178°/178°
Maximum Resolution 1920 x 1080
3G SDI in/ Loop-through out 2 in / 1 out
Component In 1 (3 x BNC) (Y Pb Pr)
HDMI In 1
DVI In 1
VGA In 1
Audio Input 1 (stereo headphone jack)
3G SDI Input Format 1080P@60/59.94/50Hz Level A
HD-SDI Input Format 1080i (60/59.94/50); 1080P(30/29.97/25/24/23.98); 1080Psf (30/29.97/25/24/23.98); 1035i(60/59.94); 720P (60/59.94/50/30/29.97/25/24/23.98)
SD-SDI Input Format 525i (NTSC 59.94); 625i (PAL 50)
2K Input Format 2048 x 1080P@24/23.98/24sF/23.98sF
Component Input Format 1080P (60/59.94/50); 1080i (60/59.94/50); 1080P (30/29.97/25/24/23.98); 720P(60/59.94/50)
Remote Control RS-422 (RJ45)
Dimensions (W x H x D mm) 744W x 502H x 160D (With Stand)

744W x 450H x 70D (Without Stand)
Weight 12 kg
Electrical Rating / Power Consumption AC 100-240 V
50W
Operating Temperature 0°C - 40°C
DOWNLOAD PRODUCT BROCHURE (2.6 MiB)
