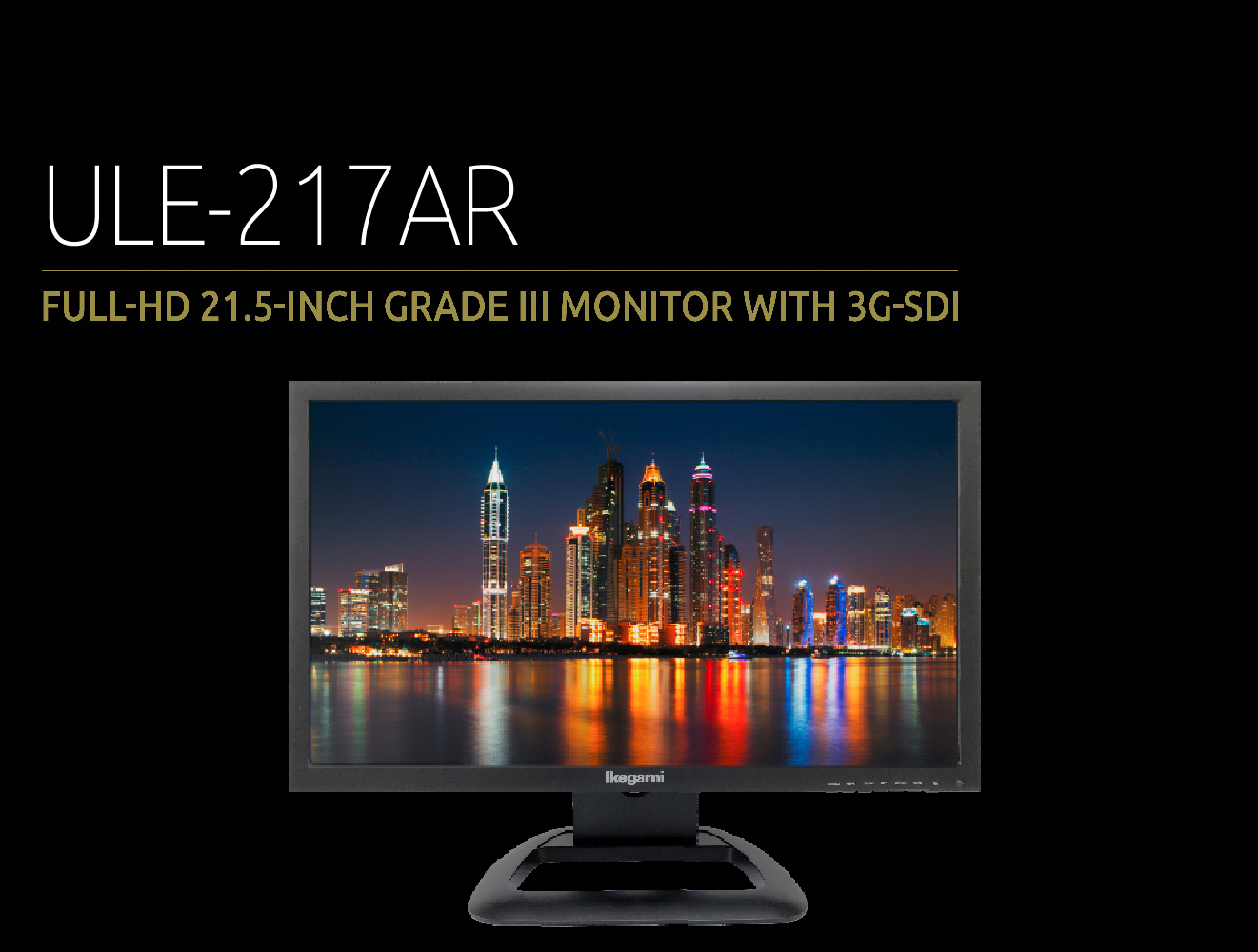

ULE-217AR
RATINGS


The Ikegami ULE-217AR is a professional multi-purpose Full-HD monitor with 3G/HD-SDI and HDMI interface. It is ideal for PC applications or HD video monitoring. With a VESA interface it can be easily racked, wall-mounted or used as a desktop. An outstanding price-performance ratio makes this monitor a smart solution for many production environments.

  • Full Full-HD 3G multi-format LED monitor
  • 3G/HD-SDI Input / Output
  • HDMI, DVI, VGA
  • Analogue Composite (CVBS) Input / Output
  • Source switching by trigger (RJ45)
  • 3D comb-filter and de-interlace
  • Built-in loudspeakers
  • Eco-friendly LED solution
  • Built-In HDCP encryption engine
You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: broadcast@ikegami.de
Contact Form



up

RATINGS / PERFORMANCE ULE-217AR
LCD size 21.5-inch
Pixel pitch (mm) 0.08265mm X 0.24795mm
Brightness 250cd/m2
Contrast ratio 1000:1
Viewing angle (H/V) 170°/160°
Response time 5ms or better
Colour Depth 8-Bit
Maximum Resolution 1920 x 1080
3G SDI In/ Loop-through Out 1 In / 1 Out
Analogue Composite (CVBS) 1 In / 1 Out (BNC)
HDMI in 1
DVI in 1
VGA in (15 pin D-sub) 1
Audio Input 1 (stereo headphone jack)
3G SDI input format 1080P@60/59.94/50Hz Level A
HD-SDI input format 1080i (60/59.94/50); 1080P(30/29.97/25/24/23.98); 1080Psf (30/29.97/25/24/23.98); 720P (60/59.94/50/30/29.97/25/24/23.98)
SD-SDI input format 525i (NTSC 59.94); 625i (PAL 50)
Composite Input Format NTSC(525/59.94i) , PAL(625/50i)
HDMI Input Format 480i/480P/576i/576P/1080i/1080P
Trigger Input (Source Switch) RJ45
Dimensions (W x H x D) 515mm x 310mm x 50mm (without stand)
Weight 3.2kg (without stand)
Electrical Rating 12V 3.3A
