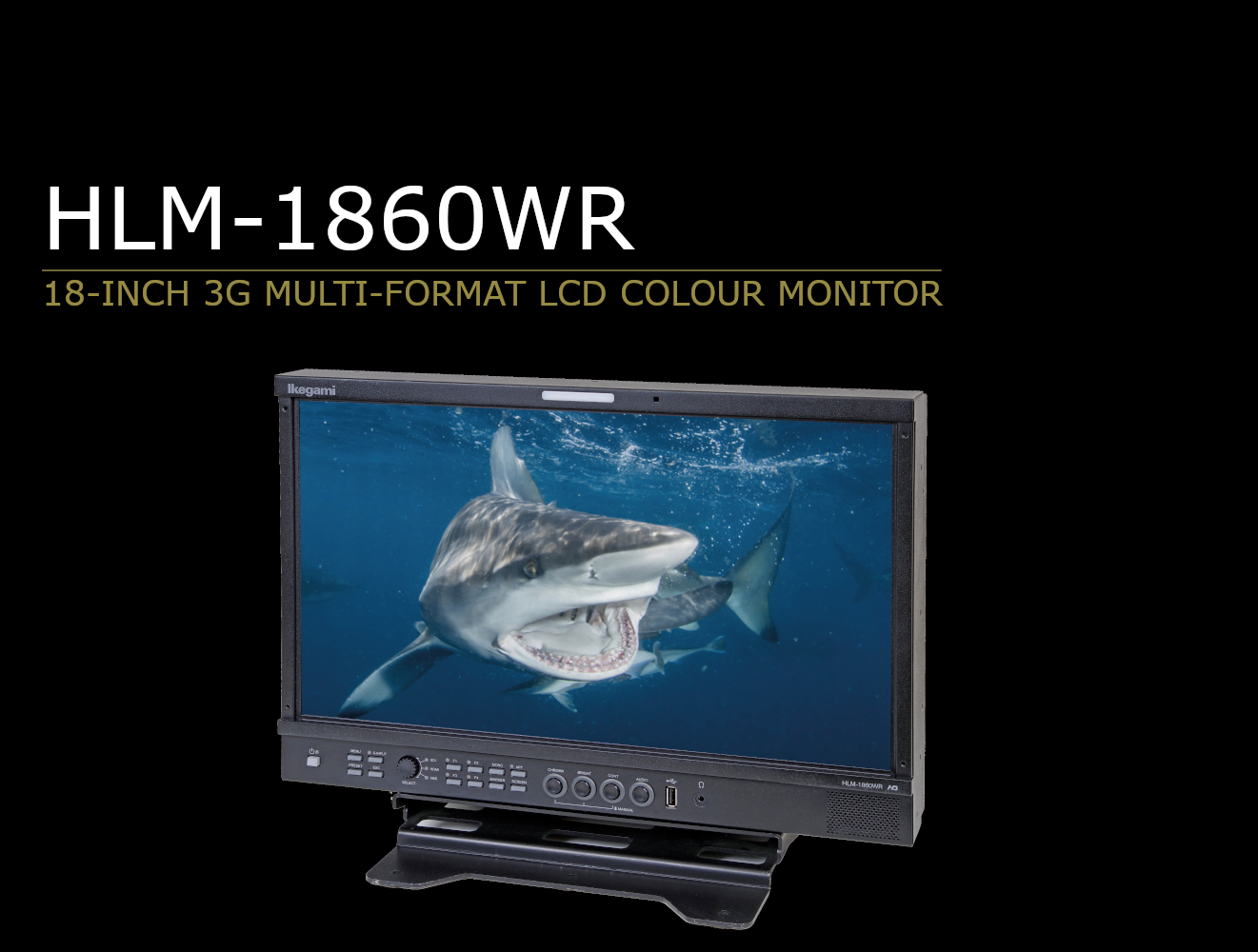

HLM-1860WR

The HLM-1860WR features a larger 18.5-inch LCD panel within the same 19-inch rack-width 7RU chassis as its predecessor. Seamless tally integration via Ethernet is made possible by the support of the TSL V5.0 protocol. The bright LCD panel boasting 500 nits reproduces clear images even in environments with predominant ambient light. The HLM-1860WR fits into outdoor as well as indoor monitoring applications.

Convenient features such as Picture-In-Picture, Side-By-Side Video, Audio Meters, User Markers and R/G/Y Tally make the Ikegami HLM monitor series the ideal companion for broadcast productions.

Ikegami’s HLM-60 series monitors offer HDR (High Dynamic Range) EOTF tables of HLG1, HLG2 and S-Log3 as an option in addition to conventional Gamma.

  • High Performance Liquid Crystal Panel
  • Compatibility with embedded Audio
  • DC Operation
  • Built-in Marker Function
  • User Marker Display Function
  • Shadow Function
  • Remote Control via Ethernet or RS-485
  • Various built-in Test Signals
  • Waveform Monitor/Vectorscope Display Functions
  • Timecode Display Function
  • 2-picture Split Display & Picture-In-Picture Mode
  • Dot-by-Dot Display Function
  • Auto Setup with supported probes (Konica Minolta CA-310/-410, Klein Optical Instruments INC K10-A, Jeti Technische Instrumente GmbH Specbos 1211-2)
  • 5.1ch Surround Down-Mix Output
  • Image & Test Signal MIX Functions
  • 2x/4x Zoom Function
  • IMD/UMD:TSL V3.1 & V5.0 Support
  • High Dynamic Range support (Factory-option)

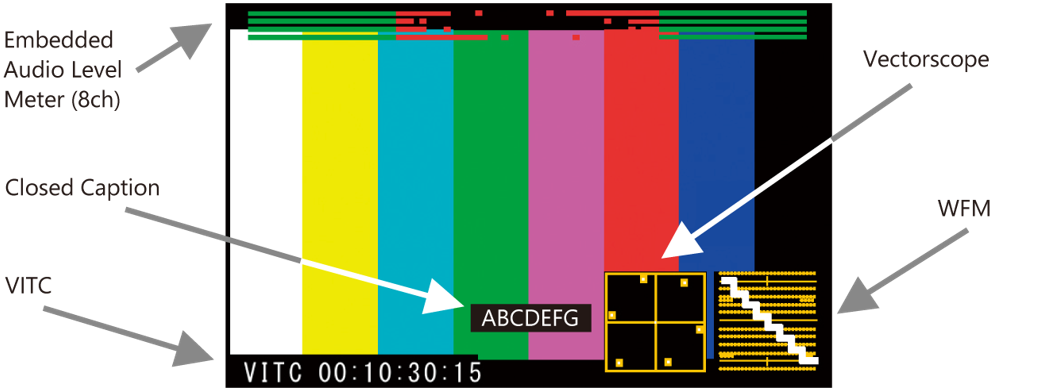

Loaded with Information Display

The HLM-1860WR supports dynamic and static UMD in addition to the features shown below.



User Defined Markers

A program production aid allowing up to 12 lines or boxes to be displayed. These can be drawn easily using a USB mouse.



Automatic Calibration (Optional)

Optional AWC software ensures consistent and accurate color reproduction over time. By acquiring real-time measurement data via a colorimeter, Windows-based software automatically aligns the R/G/B gain to exhibit the correct white balance.

Compatible Colorimeters:
Konica Minolta CA-310 / CA-410
JETI Specbos 1211-2
Klein Instruments K10-A

You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: broadcast@ikegami.de
Contact Form




up


ACCESSORIES

 RCT-30A Infrared Remote Controller

 SRC-400 Serial Remote Controller

 RS-1770(T) Rackmount Adaptor

 STD-1517(T) Stand

 STD-1517 Stand

STD-1722M Stand

STD-1760 Stand

STD-1760(T) Stand

 MH-1860 Hood

 PP-1860 Protection Panel

 CC-1860 Hard Carrying Case

up

RATINGS / PERFORMANCE HLM-1860WR
DISPLAY PANEL
Type of Panel IPS Type
Number of Pixel 1920 x 1080
Display Size 18.5-inch
Brightness 500 nits
Contrast Ratio (typical) 1000:1
Display Color 16.77 million colors
View Angle(up & down, left & right typical) 178°
Power Requirement AC: AC100 to 120V / AC200 to 240V DC: DC10.5 - 18V
Power Consumption (Max.) AC: 48W DC: 43.2W
Dimensions (W x H x D) 440 x 301 x 80mm
Weight (excluding stand) 6.0 kg (13.23 lbs)
Supporting Format SDTV: 480i / 59.94, 576i / 50
  HDTV:
1035i/59.94/60, 1080i/50/59.94/60
1080p/23.98/24/25/29.97/30/50/59.94/60
1080psF/23.98/24/29.97/30 720p/23.98/24/25/29.97/30/50/59.94/60
VIDEO
Input/Output 3G/HD/SD‐SDI
2 inputs / 2 output (loop through) or 4 inputs or 4 outputs
  VBS
1 input / 1 output (loop through)
  HDMI
1 input (HDCP)
AUDIO
Input Analog Audio Input
available as standard (stereo mini jack)
Speaker 1W (Mono)
Headphones Stereo Mini Jack
Control: Ethernet Remote Control & Tally/UMD (TSL V5.0)
Control: RS-485 Tally/UMD (TSL V3.1)
Control: GPIO supported

HLM-1860WR
