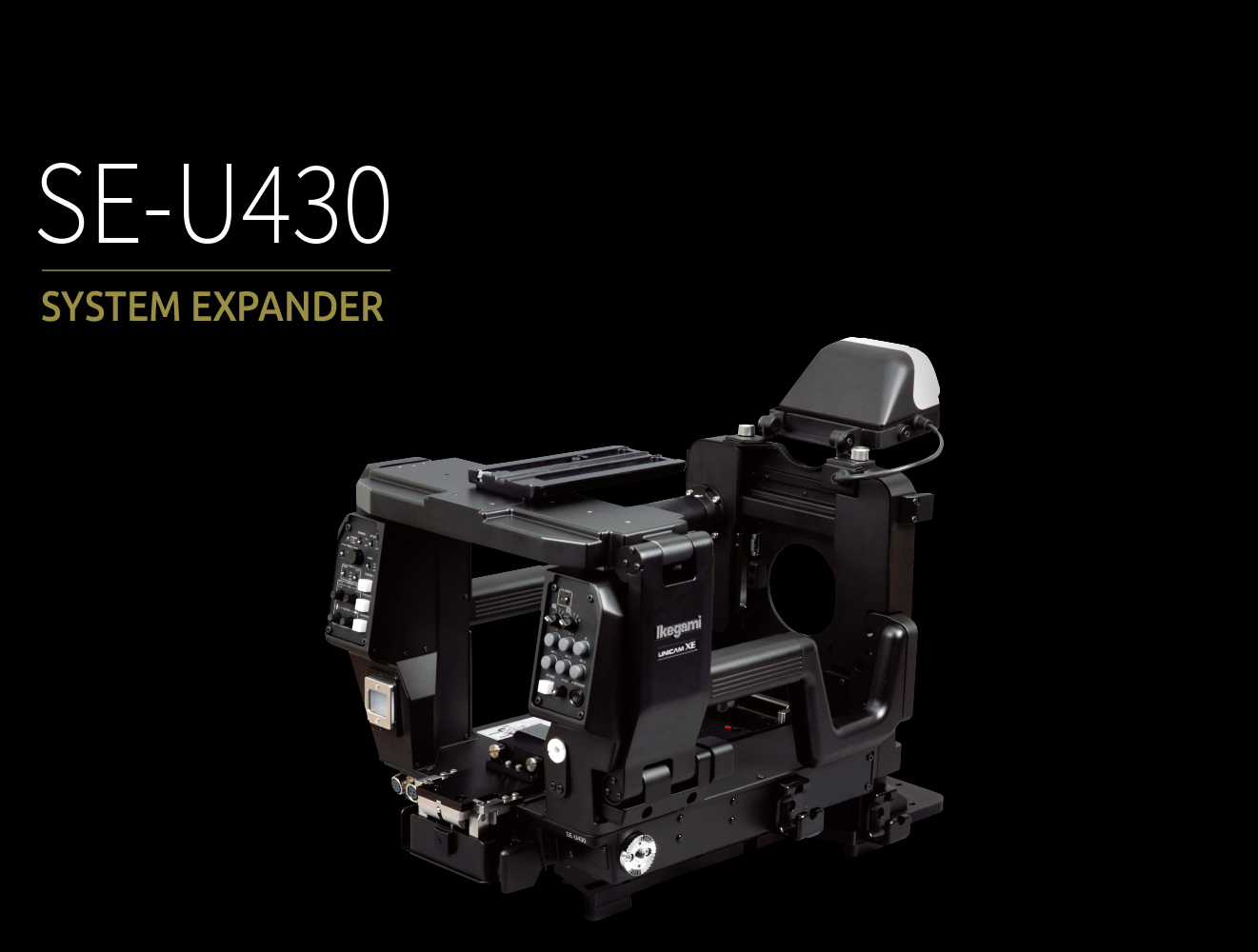

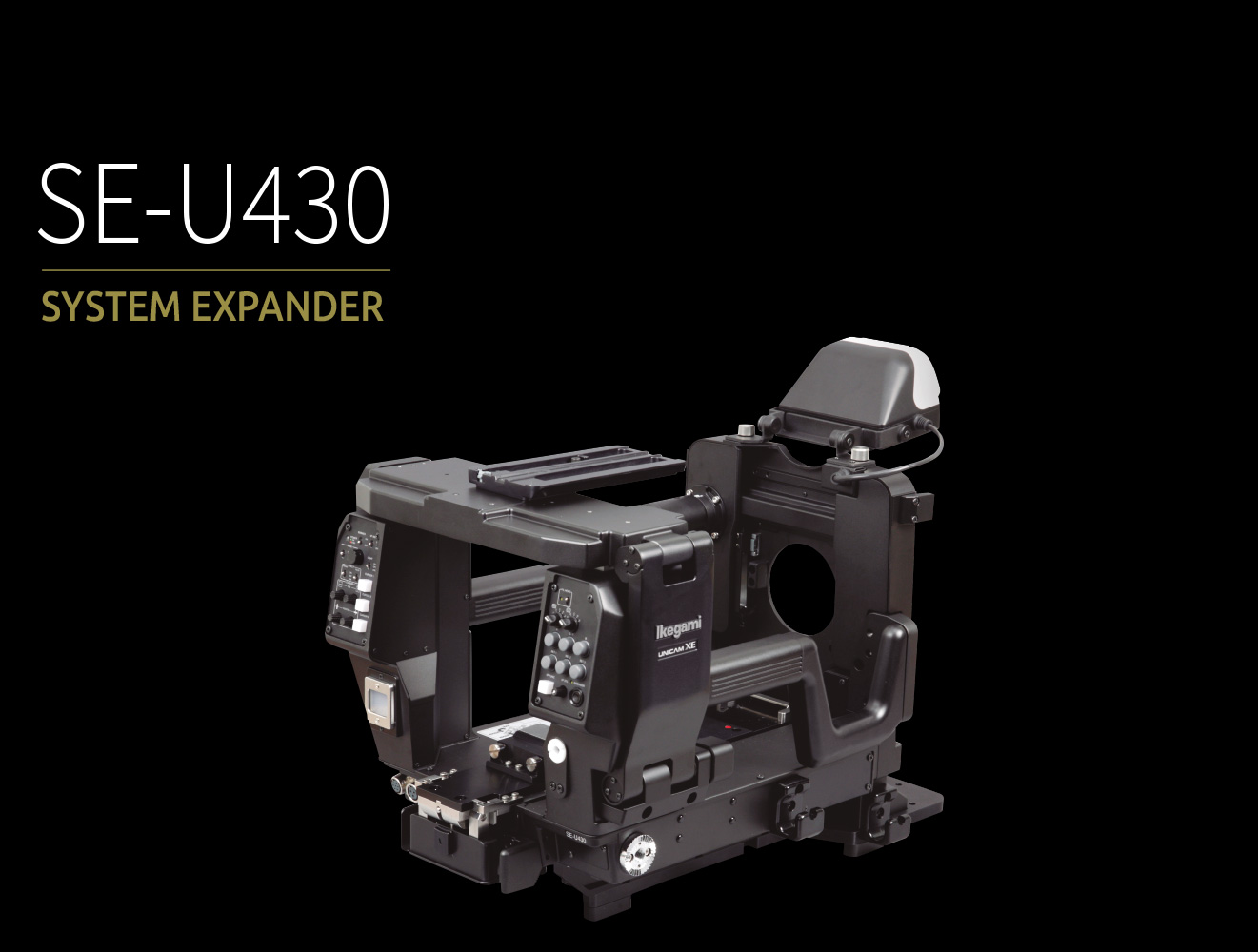

SE-U430
RATINGS

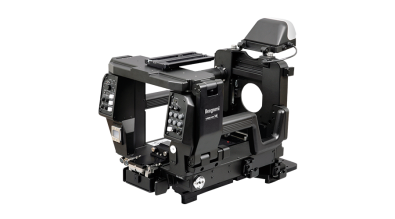

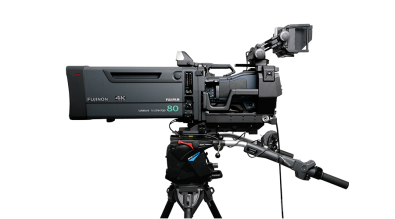

The SE-U430 System Expander enables the use of a large studio viewfinder and studio lenses with Ikegamis' UHK-430, converting the portable camera into a full facility studio camera. Camera installation into the SE-U430 is very easy and conversion back to a portable configuration is quick for maximum operating flexibility. The camera can be slided back by releasing the lens lock while maintaining the optical axis of the lens and camera . This makes the swapping of large lenses very easy.

  • Portable Lens also can be attached
  • Improved lens swap mechanism
You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: broadcast@ikegami.de
Contact Form



up

RATINGS / PERFORMANCE SE-U430
Dimensions DW 333 x H 329.5 x D 403 mm
Weight SE-U430: Approx. 12.5 kg
LS-U430: Approx. 2.9 kg
Ambient Temperature -20 °C to +45 °C
Ambient Humidity 30 % to 90 % (non-condensing)
Power for lens DC 12 V 3.0 A
Power for script lighting DC 12 V 1 A
