MKC-750UHD
FUNCTIONS
RATINGS

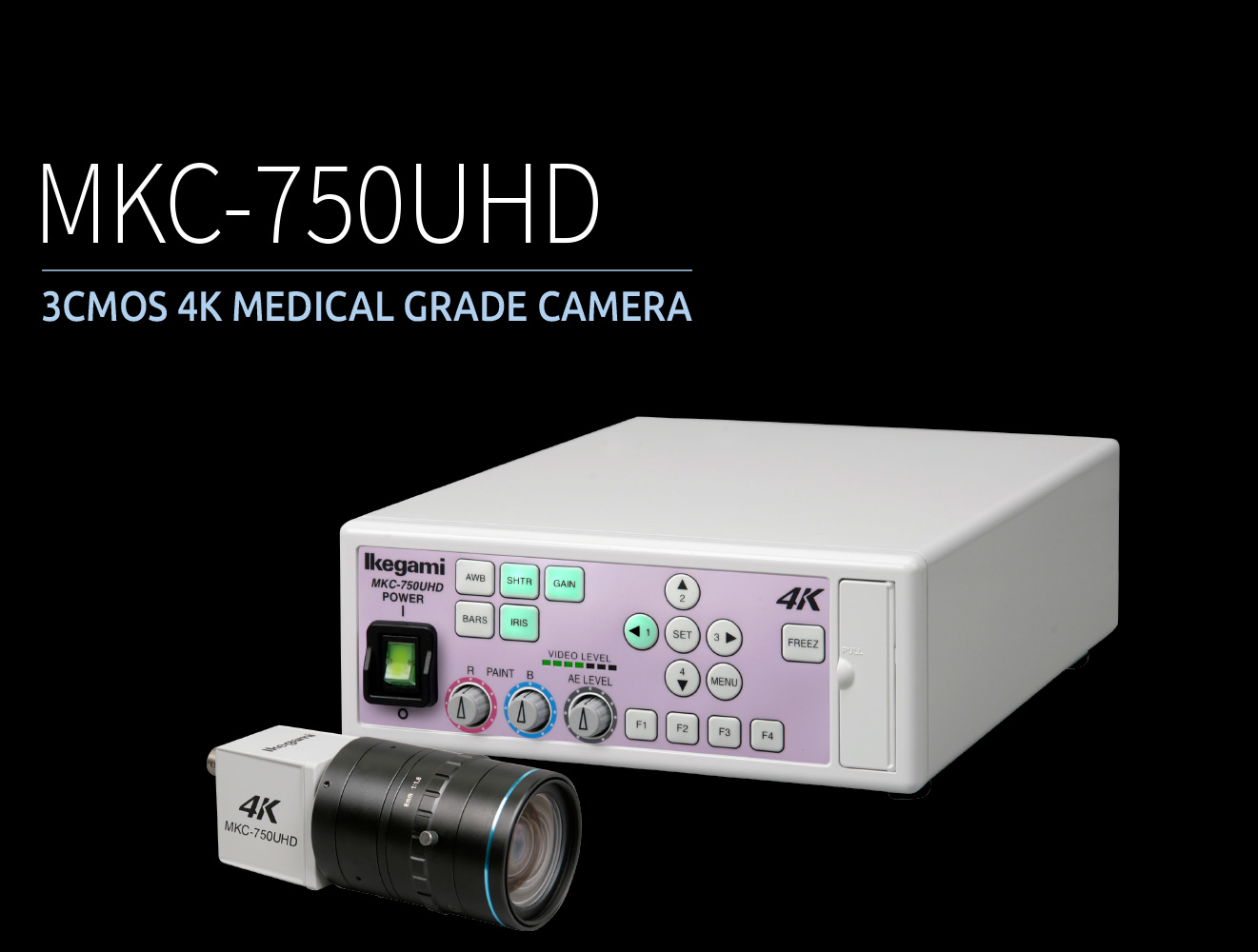

Ikegami has developed Medical Grade 4K Camera MKC-750UHD to be suitable for surgical video operations, Microscopes or Endoscopes. MKC-750UHD is the first developed medical 4K 3 sensors camera from Ikegami. With the latest 3-CMOS and Ultra HD resolution (3840x2160pixels), the MKC-750UHD gives the superb high picture quality. The camera will be avilable for OEM, the camera head, Camera Control Unit and Medical grade cable will be offered as per customer's requierd specifications.

  • 3 Chip CMOS progressive Image Sensor
  • High Quality 4K image (3840 x 2160 pixels)
  • Various Video Outputs
  • Ultra Compact Camera Head: W34 x H40 x D40 mm
  • OEM Possibility
You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: medical@ikegami.de
Contact Form


up


HIGH QUALITY IMAGE OUTPUT

Employs a 1/3-inch 3 CMOS sensor ,Ultra HD resolution (3840x2160pixels) 4K.



NEW DIGITAL PROCESSOR

Progressive processing with newly developed digital engine delivering improved resolution in detail and dynamic resolution.



MIRROR, FLIP AND ROTATE FUNCTION

Digital capture allows a captured image to be flipped horizontally and vertically. Remote controllable via an external optional unit such as a foot switch.



DIGITAL ZOOM

Max. 4x zoom is available.



SCENE FILE

Each correction/function setting (four positions) can be saved and loaded easily.



LEVEL INDICATOR

Video level can be checked and adjusted using a level indicator.



ANTI-BIOTIC COATING (ANTIBACTERIAL COATING MATERIAL)

The camera-head and CCU (camera control unit) use an antibiotic to help to improve infection control.

up

RATINGS / PERFORMANCE MKC-750UHD
Image Sensor 1/3-inch 3CMOS
Lens Mount C-mount
Sensitivity F8 at 2000lx/3200K or better
F11 at 2000lx/3200K or better, Line Mix ON
S/N 58 dB (Gamma / * Detail OFF)
Output signal 4K 3G-SDI 4 ch
HDTV HD-SDI (1920 x 1080 i/p) BNC 2 ch
DVI (1920 x 1080 i/p) 1 ch
External Synchronization HDTV Tri-Level SYNC 1 ch
Auto GAIN Available
Auto White Available
Auto Iris Available
Auto Shutter 1/100 - 1/10000
Shading Correction Available
Digital Zoom Max. 4 position
DC Iris Control Available (from CCU)
External Control RS-232C 1 ch
Operating Temperature 0 to +35 °C
Power Requirement AC 100 - 120, 200 - 240 V ± 10 % 50/60 Hz
Weight Camera Head: less than 100 g; CCU: less than 3 kg
Dimensions Camera Head: W 34 x H 40 x D 40 mm; CCU: W 210 x H 80 x D 270 mm
