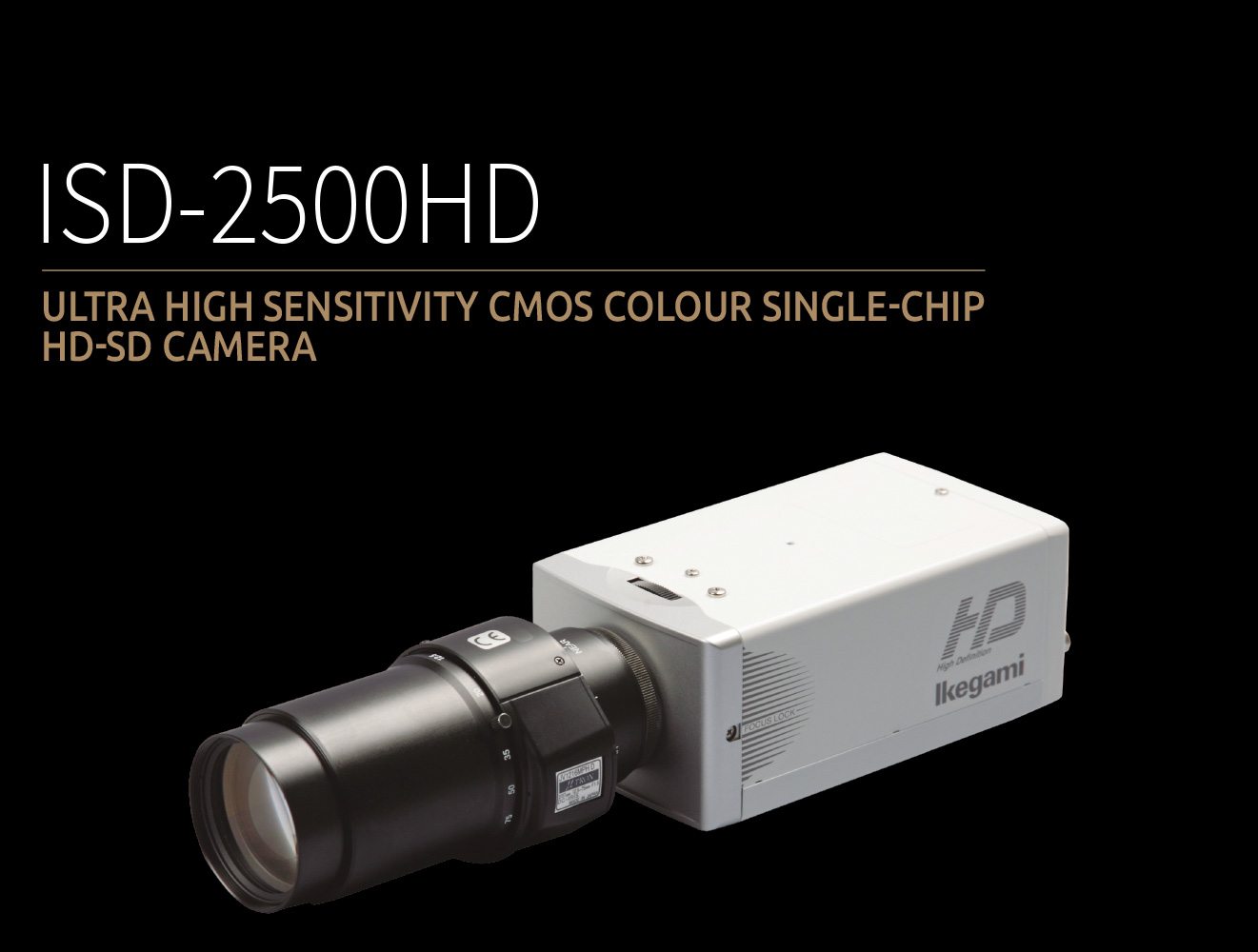

ISD-2500HD
FUNCTIONS
RATINGS


Newly developed CMOS Sensor is employed to achieve superb picture quality. The 1.47 Megapixel CMOS Sensor have wide dynamic range and, in principle, no smear. The Sensors include significant circuitry within the sensor itself, resulting in a digital video interface between sensor and Ikegami Camera DSP, all in a very small device with low power consumption. HD-SDI (59.94i, 50i, 30p, 25p) and NTSC or PAL (4:3) can be output simultaneously. RS-485 also available.

  • Ultra High Sensitivity
    0.00016 lux F1.2 50% (Colour)
    0.00004 lux F1.2 50% (B&W)
  • Wide Dynamic Range Adjustment
  • De-fog
  • Focus EZ Function
You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: security@ikegami.de
Contact Form

up

RATINGS / PERFORMANCE ISD-2500HD
Image Sensor 2/3-inch CMOS Sensor
Effective Pixel 1280 (H) X 720 (V)
Pixel Size 7.1  um x 7.1 um
Synchronization Internal and External
Video Output HD: HD-SDI 1080 (59.94 i / 50 i / 30 p / 29.97 i / 25 p) 720
(60 p / 59.94 p / 50 p / 30 p / 29.97 p / 25 p)
  SD: VBS NTSC / PAL
External Control RS-485
Limiting Resolution 650 TV Lines or more
Sensitivity F22 at 2000 lx
Minimum Illumination 0.00016 lx / F1.2 (IRE 50%, Colour mode); 0.00004 lx / F1.2 (IRE 50 %, B/W mode)
Auto Iris DC Iris
Auto Gain Control ON (AGC, Hyper-AGC)/ OFF (low, MID, HIGH)
Electronic Shutter OFF, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10,000, variable
Automatic Electrical Shutter Fast, slow, response
Slow Shutter X1, x2, x4, x6, x8, x12, x16, x24, x32, x64, OFF / AUTO / MANUAL
Backlight Compensation Selectable 9x5 Areas
White Balance ATW1 / ATW2 / AWC / Manual
Wide Dynamic Range OFF / WDR / AUTO KNEE / AUTO BLACK STRETCH
De-fog OFF / ON
Gamma Correction 0.45 / 0.75 / 1
Noise Reduction Available
Electrical Zoom X1, x2, x3, x4, x5, x6, x7, x8, x9, x10
Privacy Mask Available, maximum 8 Areas (GREY, WHITE, BLACK)
Focus EZ Available
Image Flip Normal / Flip / Mirror / Flip & Mirror
Lens Mount CS-mount
Lens Flange Back Available with adjustment Mechanism
Power Requirement DC 12 V / AC 24 V
Dimensions / Weight W 78 x H 58 x D 1400 mm / 650 g
