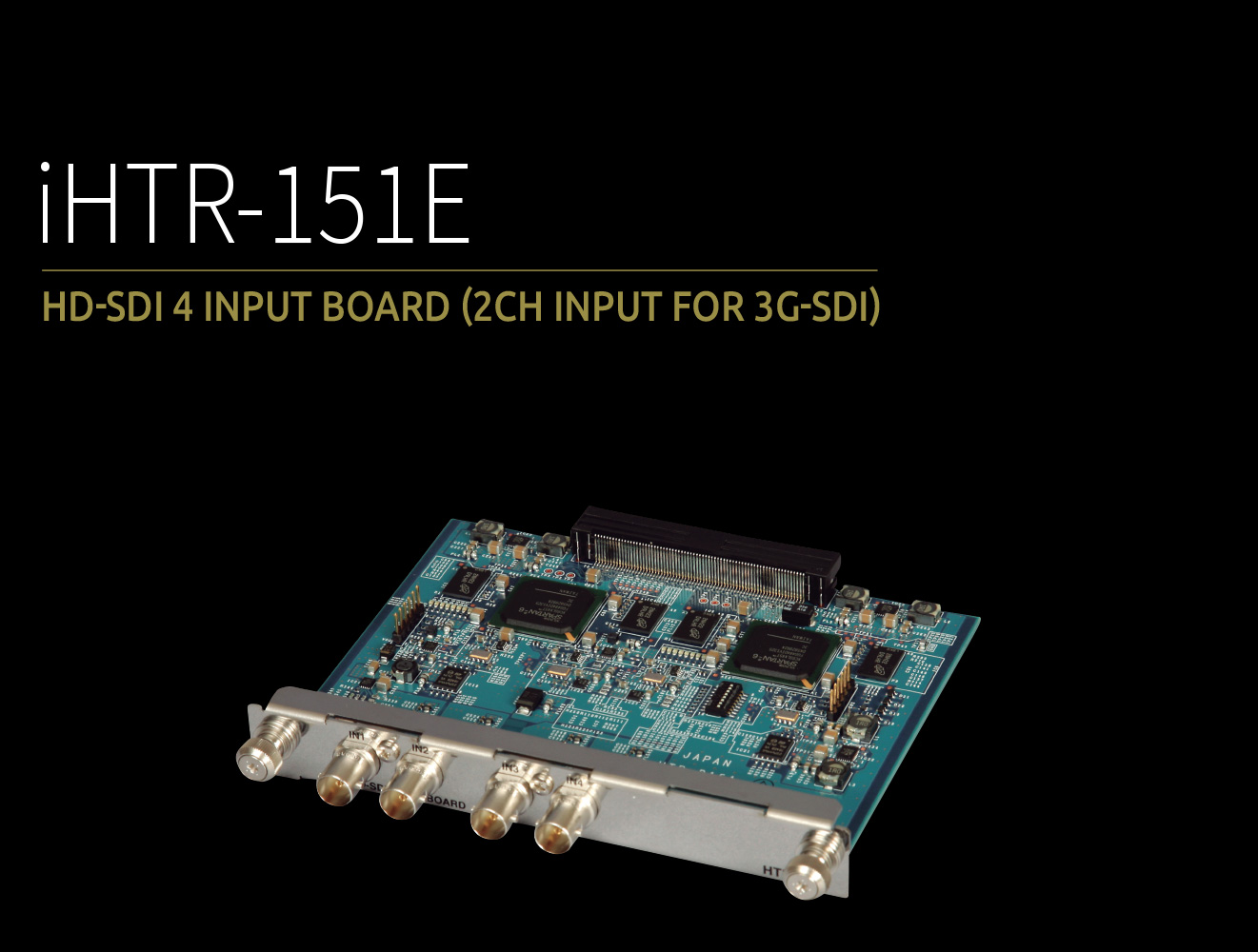

iHTR-151E
RATINGS


HD-SDI 4 Input Board (2ch input for 3G-SDI).

  • Input Signal: SMPTE 292M / SMPTE 424M Embedded Audio Supported 1080o/50, 59.94, 1080i/50, 59.94, 1080p/23.98, 1080p/23.98sF, 720p/50, 59.94
You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: broadcast@ikegami.de
Contact Form


up

RATINGS / PERFORMANCE iHTR-151E
HD-SDI Input 4ch BNC 4 inputs (2ch input for 3G-SDI)
Input Signal SMPTE 292M / SMPTE 424M Embedded Audio Supported; 1080p / 50, 59.94; 1080i / 50, 59.94; 1080p / 23.98; 1080p / 23.98sF; 720p / 50, 59.94
Cable length 100m (HD-SDI), 50m (3G-SDI) with 5C-FB
External Dimensions 142mm (W) x 21mm (H) x 108mm (D) excl. protrusions
Weight Approx. 0.2kg
