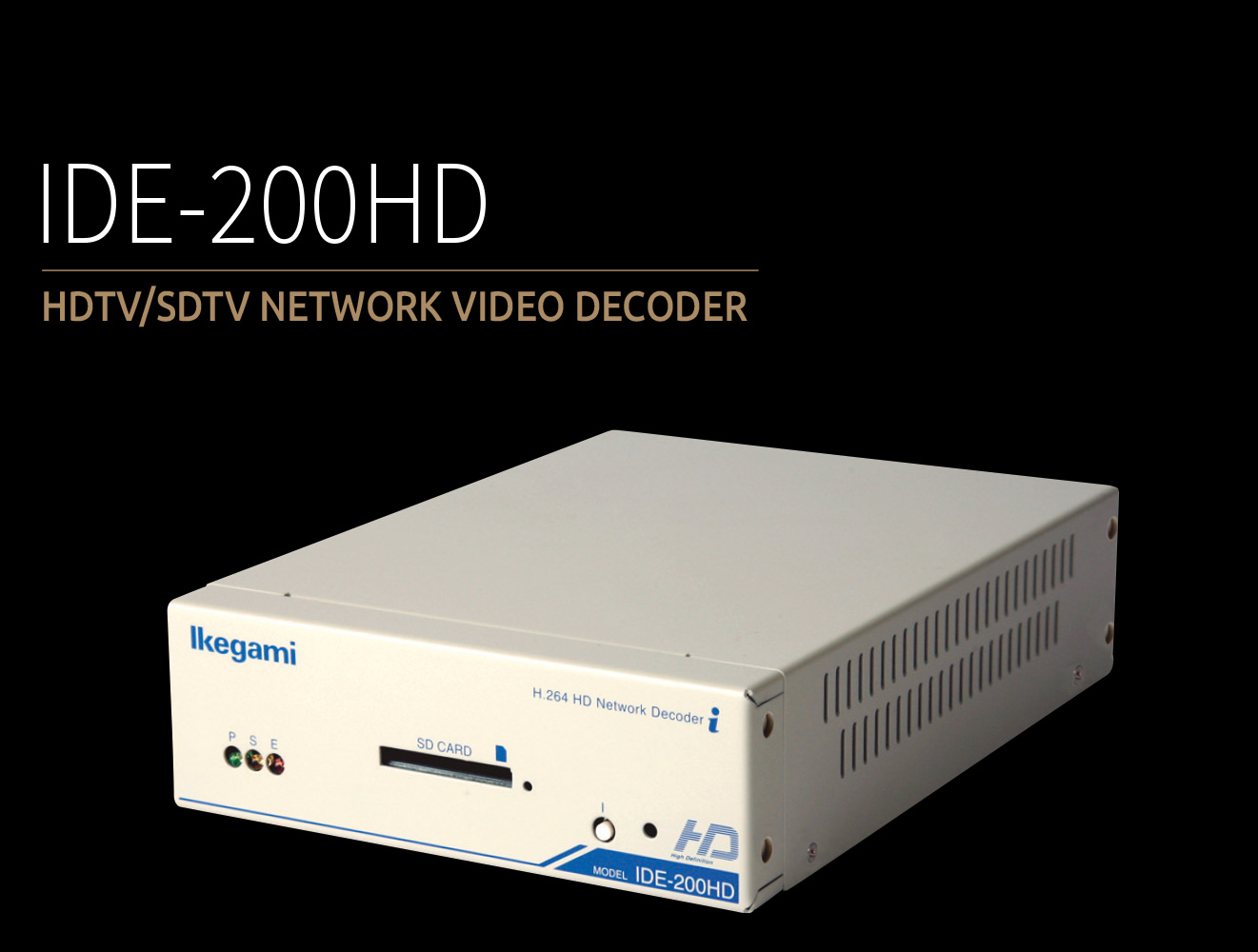

IDE-200HD
FUNCTIONS
RATINGS


The IEN-200HD/IDE-200HD are the Stand Alone PoE Network Video Codec’s from Ikegami, which deliver high quality video utilizing the highly efficient H.264 compression format. The IEN-200HD encoder and IDE-200HD decoder support up to 1920x1080 Full-HD image size.

  • HD-SDI Video Output
  • Full Frame Rate
  • SD Card On-board
  • Power over Ethernet
  • Support up to Full-HD (1920x1080) Video Format
You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: security@ikegami.de
Contact Form



up


IMAGE SIZE

Support up to Full High Definition (1920×1080) video format including 1280×720, 720×480 and 720×575 format.



VIDEO FORMAT

High Definition, 1080i, 720p; SD 480i format support.



FRAME RATE

Full frame rate video in all resolutions.



SD CARD ON-BOARD

An SD card slot interface for on-board recording.

up

RATINGS / PERFORMANCE IDE-200HD
Video Output HD-SDI, 1080 i (50 / 59.94), 720 p (50 / 59.94), SD-SDI, 480 i, 575 i
Audio Interface Stereo 1 ch in / output (duplex), Embedded audio 1 ch input (digital)
Compression Method H.264, JPEG (Dual Codec)
Picture Size 1920 x 1080, 1280 x 720, 720 x 575, 720 x 480
Frame Rate 7 steps  (max. 30  fps at 1080 i format)
Audio Stereo 1 ch in / output (duplex), Embedded audio 1ch input (digital)
Embedded Audio 2 ch based on SMPTE-299M
Interface / SD Card Interface Ethernet (10 base-T / 100 base-TX) / Available
Dimensions / Weight W 132 x H 44 x D 180 mm / 880 g
Power Consumption / Power Requirement 5 W or less / PoE, DC 12 V, AC 24 V
