BSW-970
RATINGS


This outperforming 6-way diversity base station BSW-970 is engineered for mobile and stationary requirements. The internal decoder provides many professional features like ASI, SDI, HD-SDI, component or composite and analog / embedded audio outputs with an end-to-end low delay.It features a genlock link to the wireless camera to ensure a fixed and stable latency. Full duplex camera remote control is integrated as well as 4 wire intercom. The performance and reliability is proven by its use in the most challenging environments around the world. For many users, the BSW-970 provides the hassle free use of wireless camera systems.

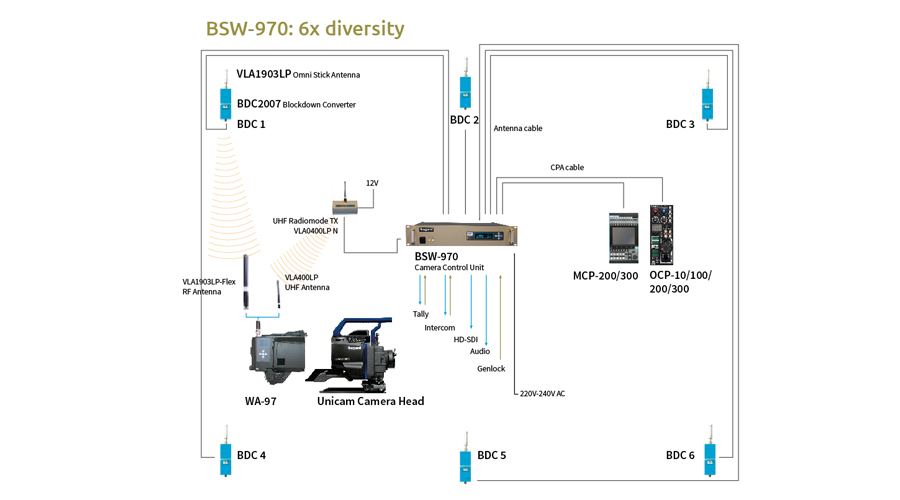

  • Integrated 6 times HDTV Diversity Receiver
  • DVBT compliant, COFDM 2k Standard
  • High Performance FFT-MRC Diversity
  • MPEG2 4:2:2P@ML / HL - H.264 optional
  • Low Latency
  • Genlock Transmission
  • Full Remote Control
  • ASI In / Out / Switch
You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: broadcast@ikegami.de
Contact Form



up

RATINGS / PERFORMANCE BSW-970

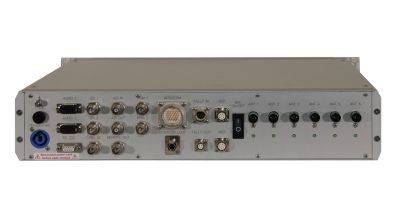

Inputs/Outputs 6 x UHF input 70 to 860 MHz BNC (f )75 Ω
  Genlock in external Genlock Tri-Level BNC (f ) 75 Ω
  CVBS Output Analog Video PM Output BNC (f ) 75 Ω
  HD-SDI Output BNC (f ) 75 Ω with embedded audio
  ASI Output BNC (f ) 75 Ω
  ASI Input BNC (f ) 75 Ω
  Audio Output 2 x Analogue Audio Output 600 Ω Sub-D9 / XLR3
  Data Output TTL BNC (f ) 75 Ω
  ICCP Remote Control Input / Output
  Tally Input / Output Power / Make
  Intercom Input / Output Analogue 600 Ω
  AC Input Neutrix PowerCon
Technical Characteristics Frequency 2.10 - 2.70 GHz (factory option 3.5 / 5.0 / 7.0 GHz Band)
  Channel Bandwidth 6.7 or 8 MHz
  Demodulation Autodetect FEC and Guard interval
  Decoding MPEG-2 4:2:2 422P@ML/HL (factory option H.264)
  Control Color LCD Touch Panel with Spectrum Analyser
  Power Input 100 to 240 VAC (50 to 60 Hz), <100 W
  Temperature 0 °C to +40 °C / Humidity 5 % to 95 %
  Dimensions (W x D x H) 485 x 400 x 88.9 mm
  Weight 6.25 kg
