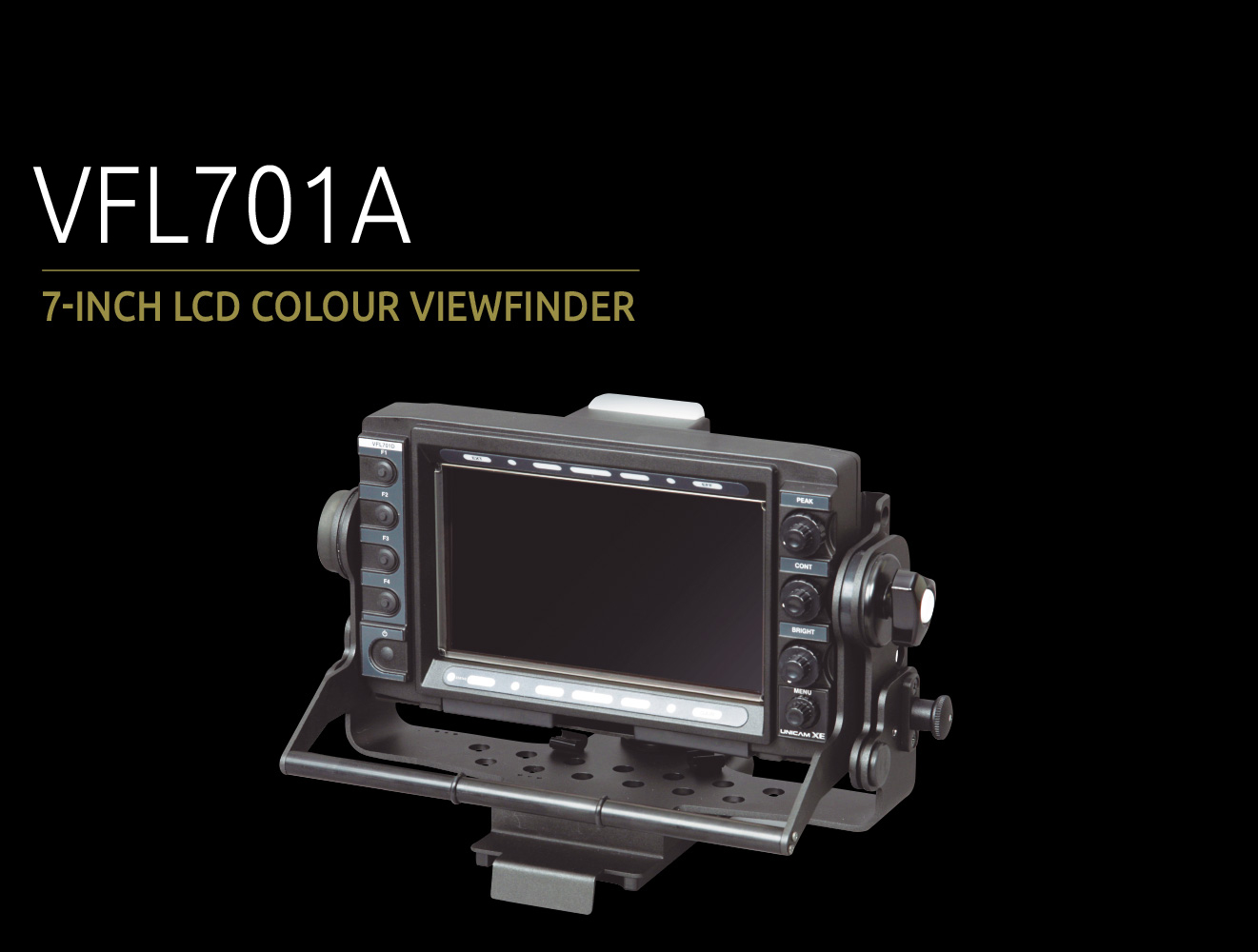

The VFL701A is 7-inch Multi-Format LCD Viewfinder for Ikegamis' Unicam HD series. It features compact, light weight and low power consumption design. The newly employed 7-inch Full HD LCD Panel achieves superior brightness, contrast and a wide viewing angle. With the new Focus Assist function, the operator can easily focus the image in every situation. Screen captures, which are transferable via USB, facilitate the set-up process of multiple cameras. Additional benefits like Picture Zoom, User Markers, Picture-in-picture, WFM, and Vector scope functions support camera operation on every level.

  • Analog I/F
  • Picture in Picture Display
  • Peaking Function
  • Camera No. Display TALLY (Option)
  • Various Marker Functions
  • Shadow Function
  • Video Capture Function
  • Assignable Switch Functions
  • Full HD Resolution
You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: broadcast@ikegami.de
Contact Form


Power Supply DC12 V (DC +10.5 V to +18 V)
Ambient Humidity 20 % to 85 % (non-condensing)
Dimensions / Weight W 235 x H 143.5 x D 76.5 mm - Approx. 1.5 kg (VF body + cable)
Input Signals Camera Signal: Analog RGB/YPbPr signal
External Signal: 3G & 1.5 HD-SDI BNC x1 - 75 Ω
Screen 155.52mm×87.48mm LCD H 1920 x V 1080
Screen Brightness 400 cd /m² or more
Colour 16.77 Million (RGB 8 Bit)
Contrast Ratio 1000:1 (typical)
Angle of Visibility Vertical 178° and horizontal 178°
