CCU-430
RATINGS


Built-in 40Gbps optical transceiver enables full bandwidth of 4K resolution signals transmission between UHK-430 and CCU-430 enabling full colour space in 4K, RGB 4:4:4; to create super high quality Chroma key signals. Simultaneous output of HD QTV x 2 lines, HD and RET x 2 lines is possible at the camera head.

A variety of In- and Output interfaces like 12G-SDI, 3G-SDI Quad-Link and Media-Over-IP (SMPTE-2110), makes the CCU-430 a perfect fit for any system architecture.

  • Ultra wide-bandwidth fibre transmission
  • 4K/2K simulcast operation
  • Individual processing for 4K and 2K videosignals for ultra high quality pictures
  • Various interfaces like Quad 3G-SDI, 12G SDI, Media-Over-IP, Gigabit ethernet data trunk
  • Wide colour space and HDR
  • Compact, lightweight and userfriendly
  • 16 axis colour corrector and focus assist powered by Next-Generation High-Speed Video Processor Asic AXII
You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: broadcast@ikegami.de
Contact Form



RELATED ITEMS


up

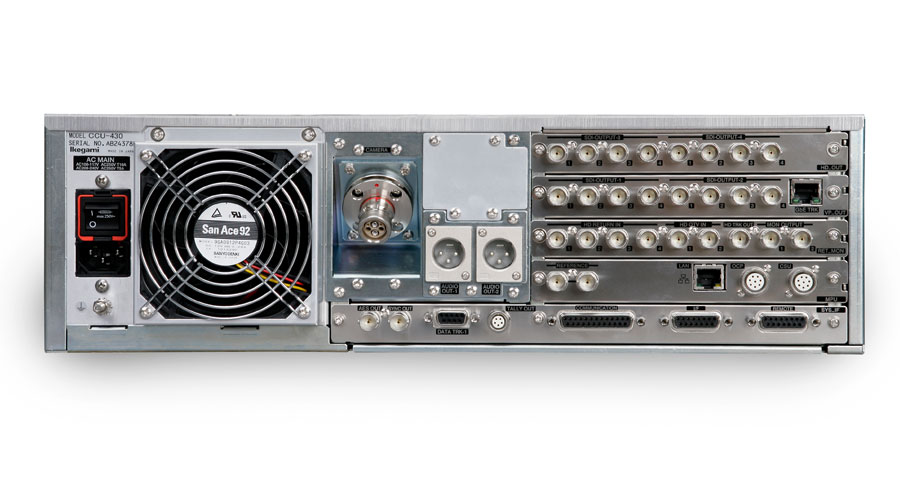

RATINGS / PERFORMANCE CCU-430
UHD/HDTV Output [BNC] 2CH 8 Output (3G/HD-SDI), Down-converted (1080p/1080i/720p)
3G-SDI (SMPTE 424/425 Level-A/B), 1920x1080:59.94P,50P,29.97P/PsF,25P/PsF,24P/PsF, 23.98P/PsF, 1920x1080:59.94I, 50I,
HD-SDI (SMPTE 292M), 1920x1080:59.94I, 50I, 1920x1080:29.97P/PsF, 25P/PsF,24P/PsF, 23.98P/PsF, 1280x720:59.94P,50P,
HIGH SPEED, 1920x1080:119.88P, 1920x1080:100p, 12G-SDI and VoIP optional available
Monitor Output [BNC] 2CH 2 Output (VF or PM Assignable )
HD-SDI (SMPTE 292M)
HD Trunk Video Output [BNC] 1x HD-SDI (SMPTE 292M) reflection 89.9 %)
Analog Output SYNC OUTPUT [BNC]: 1x Tri level sync (SMPTE 274)
Digital Audio Output 1x AES/EBU format [BNC] (SMPTE 276M)
Analog Audio Output +4dBs / 0dBs
2x XLR-3 (2 CH)
Tally Out PRC05-RB5F1, Female; Red/Green/Yellow
Communication D-sub 25P, Female, INTERCOM, PROD/ENG, 4W/RTS/CC, PROGRAM AUDIO
3 systems, TALLY IN, Red/Green/ Yellow
DC Utility Power output UHK-430 UHK-430M: HR10A-4pin (x1) :DC 12V 1.0A (max)
UHK-430S: D-Tap (x1) DC 12V 1.5A (max)
DC Utility Power output SE Interface QR/P4 24pin (x1)
DC Utility Power output DC Input XLR 4pin (x1)
DC Utility Power output USB Port USB2.0 Type-A
Data Trunk #1 D-sub 9P, Female, RS-422
Gigabit Ethernet Trunk LAN RJ-45 (1000BASE-T) (VTP CAT.5e)
I/F D-sub 15P, Female DATA TRUNK #2 (RS-422), Incom control, PREVIEW contact, System Control
Head Power on IND, DC 12V, 500mA OUTPUT
AC Inlet AC INLET / FUSE / MAIN POWER SWITCH / Noise Filter
SE interface Inlet QR/P4 24pin (x1) C
Inlet DC Input XLR 4pin (x1)
Inlet USB Port USB2.0 Type-A
Dimensions / Weight W 483mm x H 133mm x D 449mm / 19kg
