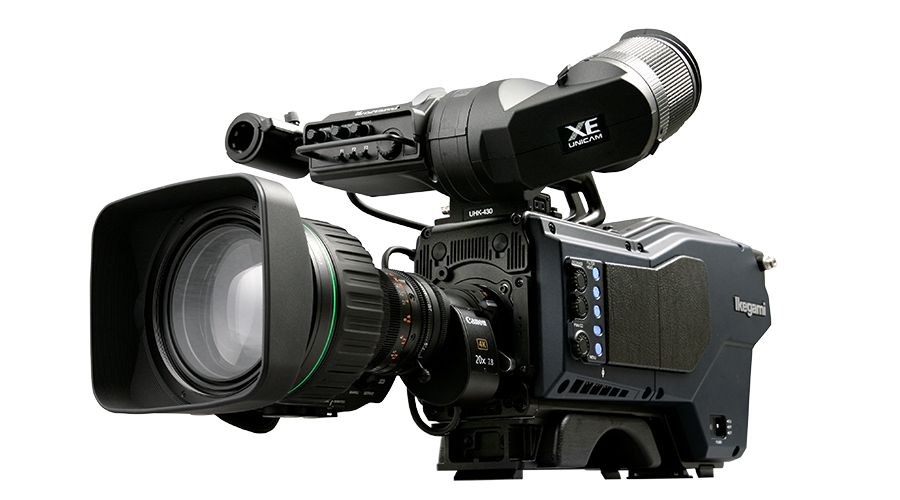

TOP-END 4K STUDIO CAMERA SYSTEM FOR ALL BROADCASTING NEEDS

First in Ikegami‘s next-generation Unicam XE series, the UHK-430 employs three newly-developed 4K-native 2/3 inch CMOS sensors which provide full 3840 x 2160 ultra-high definition resolution plus the depth of field required for studio and outdoor production. The camera is equipped with a B4 bayonet mount compatible with 2/3 inch HD lenses. An optional SE-U430 expander accommodates large studio or OB lenses.

  • 2/3” 3 CMOS native 4K sensor
  • Conventional B4 mount lenses
  • No colour aliasing due to 3 chip technology
  • Flexibility with swappable optical blocks
  • Future expandibility
  • 16 axis colour corrector and focus assist
  • Ultra wide-bandwidth fibre transmission
  • 4K/2K simulcast operation and HD cut out of the 4K picture
  • Various interfaces like Quad 3G-SDI,12G SDI, VoIP, Gigabit ethernet data trunk
  • Wide colour space and HDR
  • Compact, lightweight and userfriendly
You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: broadcast@ikegami.de
Contact Form


UKK-430
up


2/3" 3 CMOS NATIVE 4K SENSOR

Newly developed 2/3 inch 4K-native (3840 x 2160) 3x CMOS sensors that delivers real-4K resolution.



CONVENTIONAL B4 MOUNT LENSES

Integral 2/3 inch bayonet lens mount with compatibility to conventional 2/3 inch HD lenses.



NO COLOUR ALIASING

Three-chip optical technology ensures no colour aliasing which is always an issue in single-chip cameras.



FLEXIBILITY WITH SWAPPABLE OPTICAL BLOCKS

Two piece construction allows the UHK-430's sensor and lens head to be detached as a compact unit for easy deployment on a support devices such as long-reach manually-controlled camera poles. In this mode, the head can be operated up to 50 metres from the camera body.



FUTURE EXPANDIBILITY

The Docking design of the UHK-430 and the possibillity to swap the optical block to an optional assembly like 35mm 4K Sensors or High frame rate sensors creates a flexible and future proof camera design. Optional assembly is available in the year 2017.

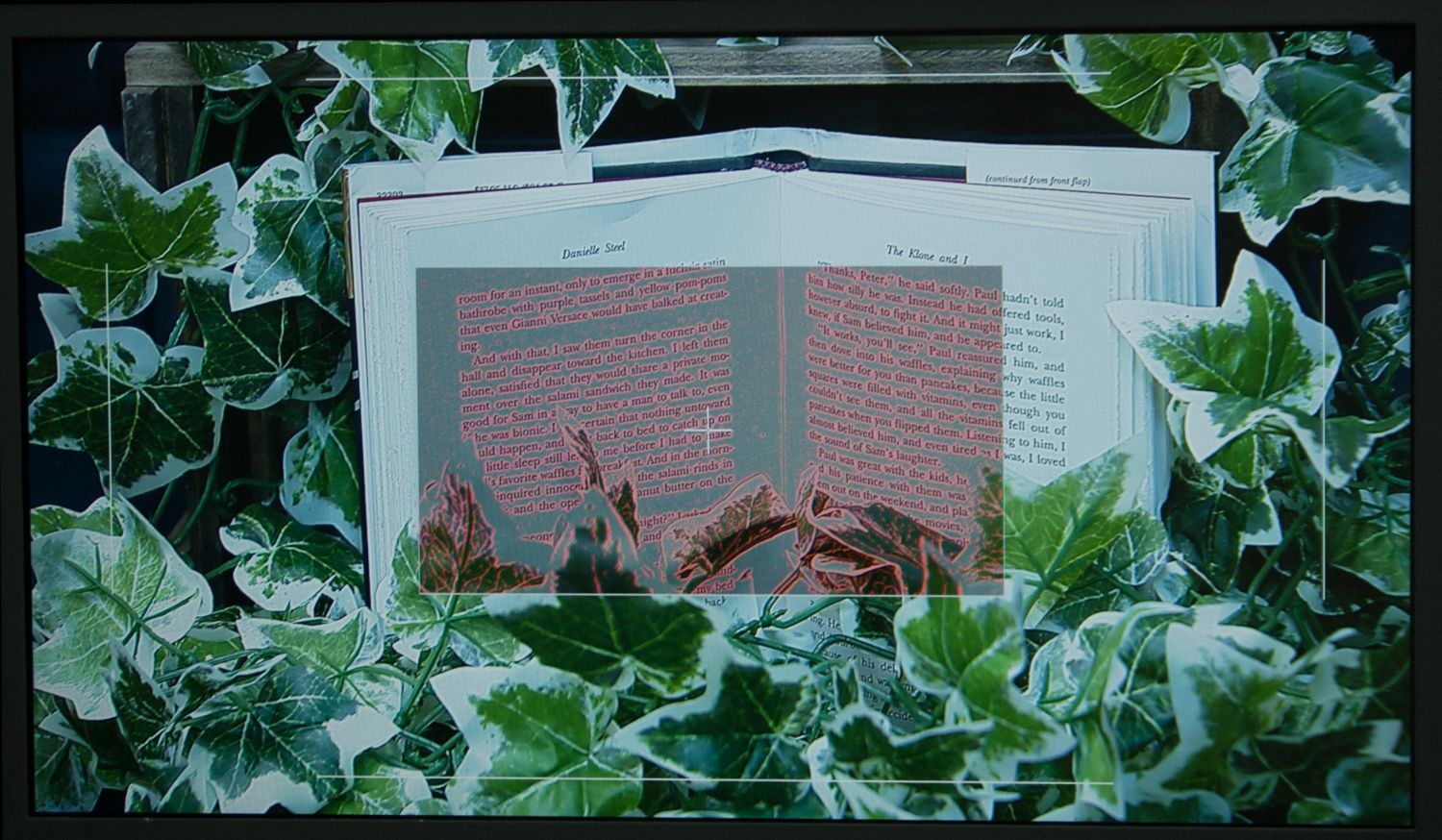

16 AXIS COLOUR CORRECTOR AND FOCUS ASSIST

Ikegami’s new ASIC AXII delivers full functionality including 16 axis colour corrector and focus-assist for 4K and HD video modes. View more details.



ULTRA WIDE-BANDWITH FIBRE TRANSMISSION

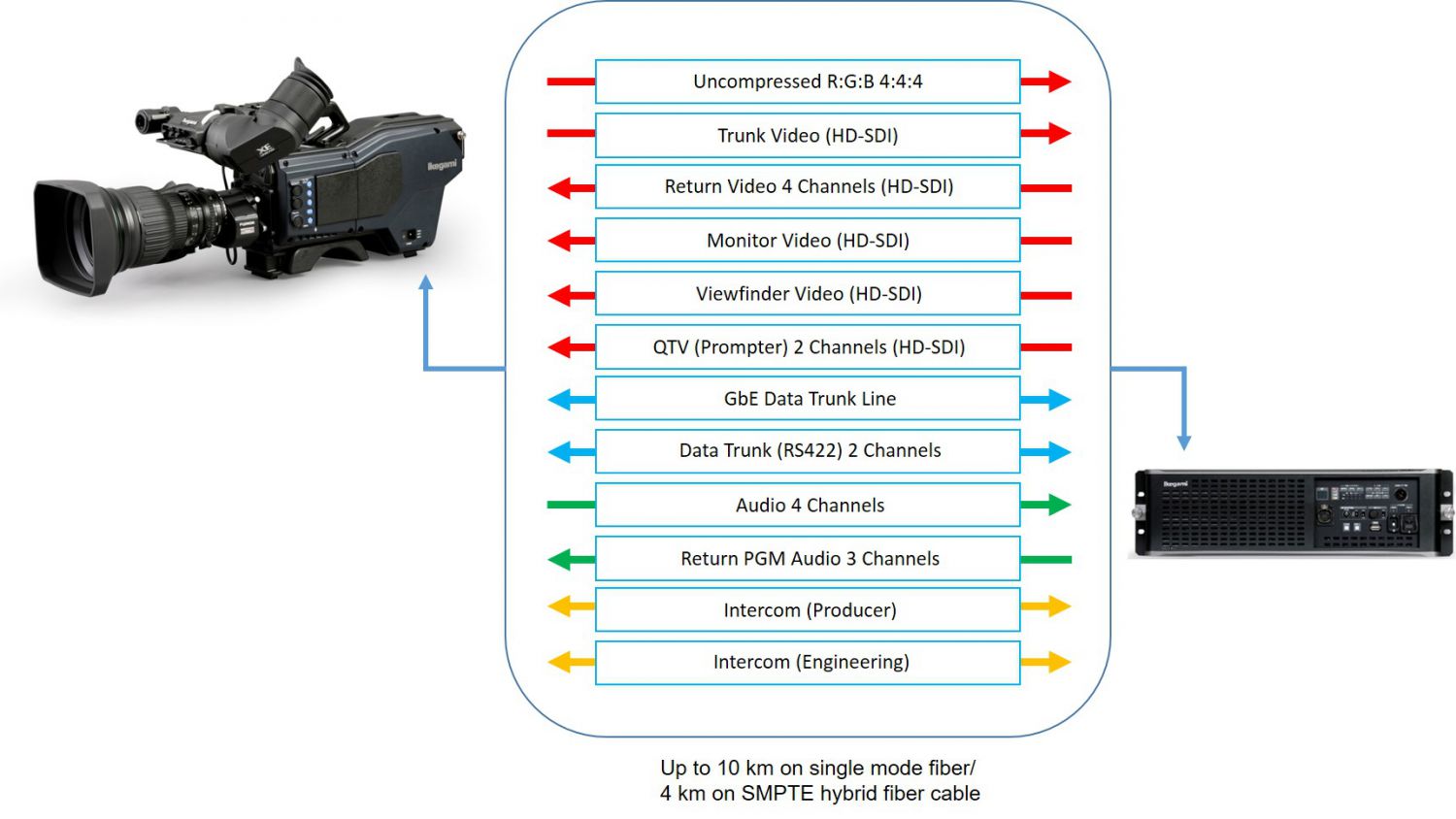

Built-in 40Gbps optical transceiver enables full bandwidth of 4K resolution signals transmission between camera and CCU enabling full colour space in 4K, RGB 4:4:4; to create super high quality Chroma key signals. Simultaneous output of HD QTV x 2 lines, HD and RET x 2 lines is possible at the camera head.



4K/2K SIMULCAST OPERATION

An optional plug-in board makes 4K video, HD video, and HD cutout from 4K available simultaneously.



VARIOUS INTERFACES

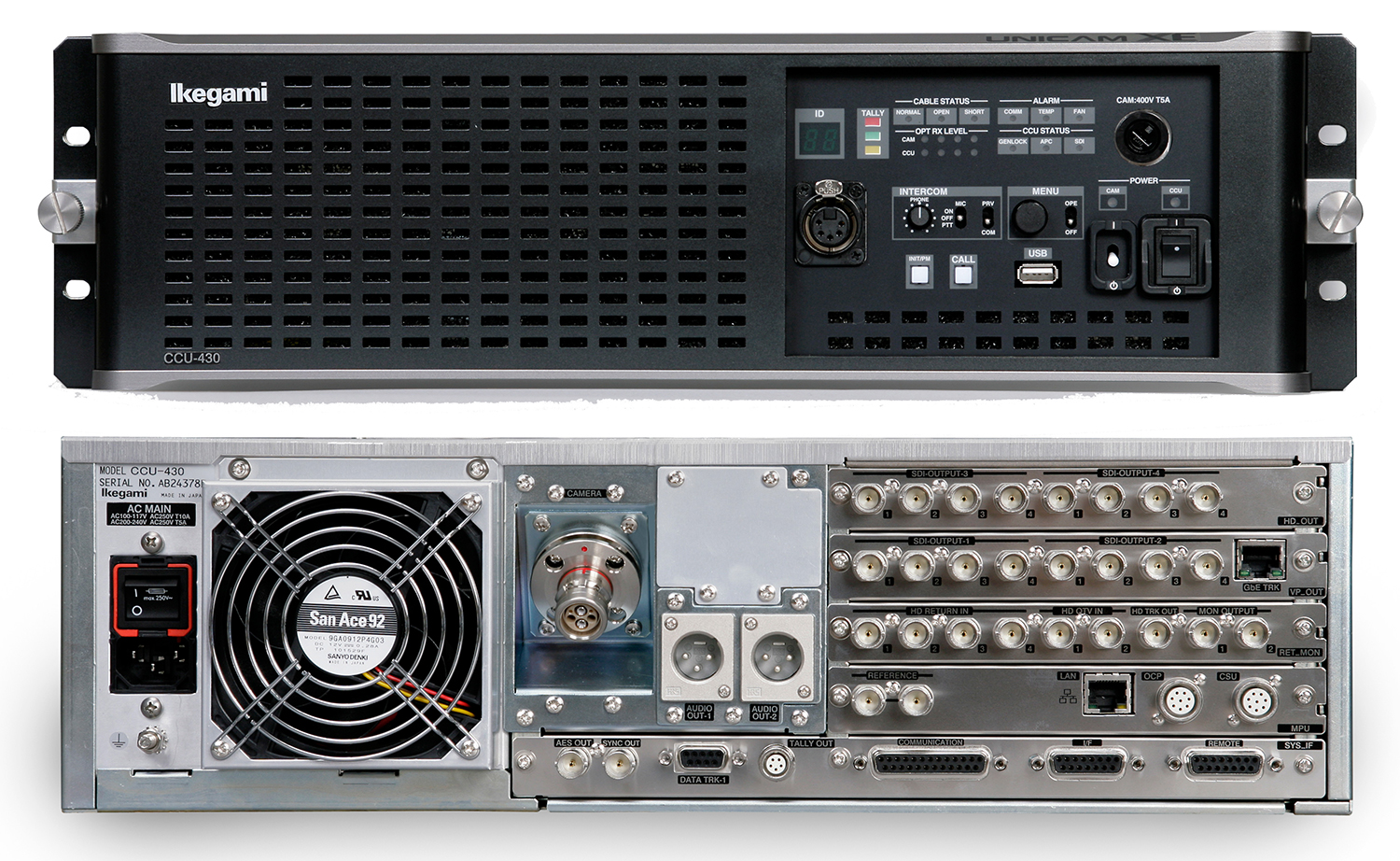

Next to Quad 3G SDI also 12G SDI, Gigabit Ethernet Data Trunk line and Video IP Interfaces are available. The companion Ikegami CCU-430 camera control unit enables easy migration from HD to 4K live production.



WIDE COLOUR SPAFCE AND HDR

BT.2020 wide colour space specification is supported in 4K mode. BT. 709 colour space is supported in 4K and HD modes. High dynamic range functionality is realised with the new Ikegami Log Gamma "iLog".

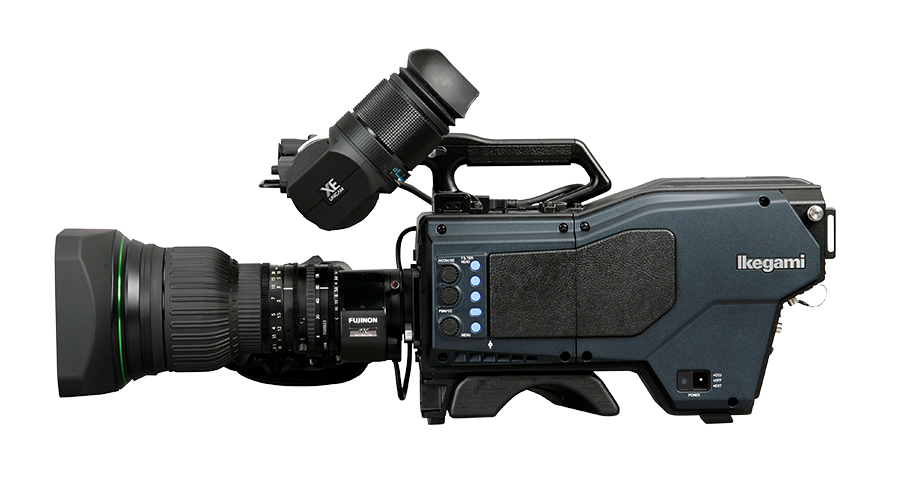

COMPACT, LIGHTWEIGHT AND USERFRIENDLY

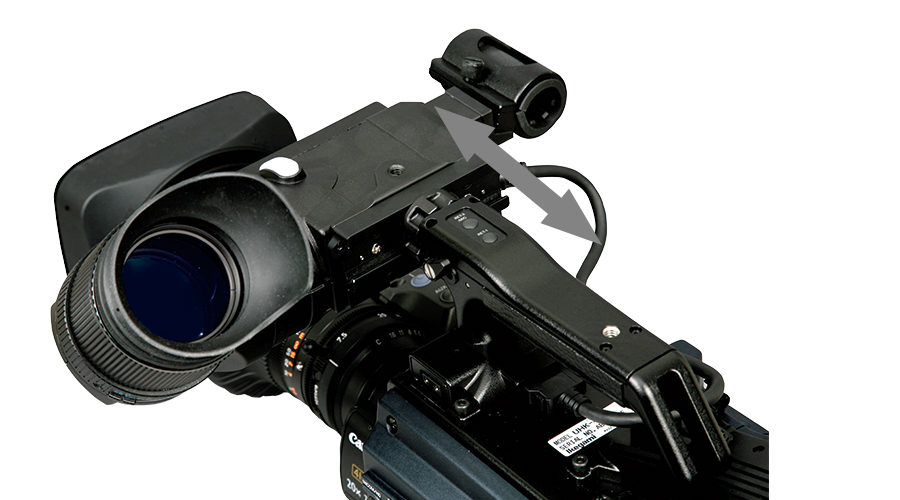

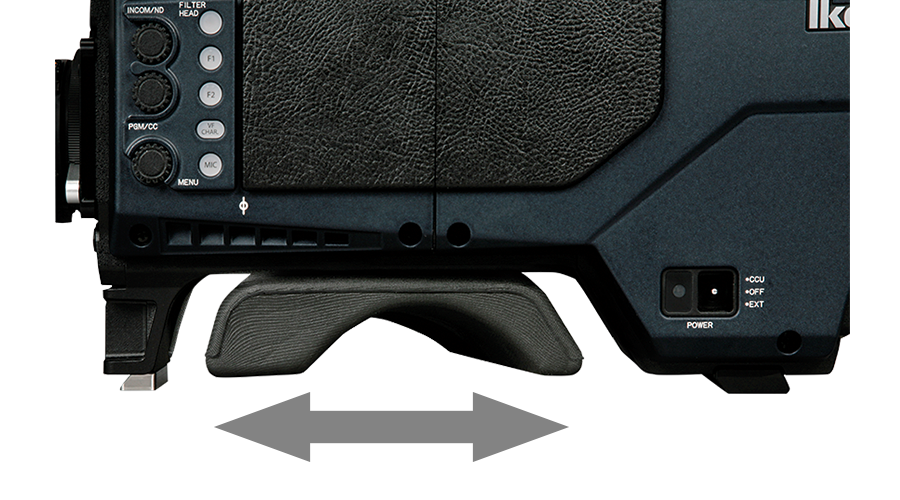

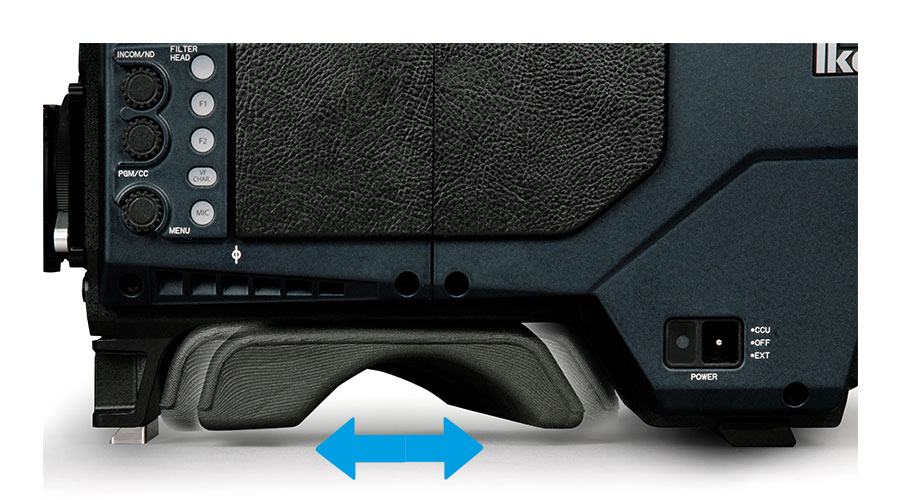

The compact body, the low weight of 4,5 kg and the low center of gravity creates perfect balance with the adjustable shoulder pad when shooting on the shoulder. Additionally the viewfinder can be adjusted in three axis. The CCU-430 weighs only 18,5 kg and fit easily into OB van infrastructure with 3RU height.

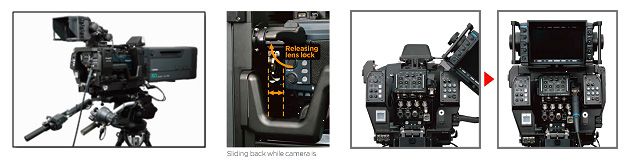

SE-U430 SYSTEM EXPANDER

Enables the use of a studio viewfinder and large studio lens with digital interface. Newly designed for UNICAM XE series with improved lens swap mechanism.



VIEWFINDERS

Three viewfinder models are available for the UHK-430. The digital interface allows access to the camera menu from the viewfinder (VFL201D, VFL701D, VFE741D).

up

RATINGS / PERFORMANCE UHK-430
Image Sensor 2/3-inch 3CMOS native 4K
Scanning System 3840 x 2160 59.94 p / 50 p, 3840 x 2160 px
Scanning System 1920 x 1080 119.88 p / 100 p / 59.94 p / 50 p / 29.97 p / 25 p / 23.98 p
Sensitivity F11 @ 4K / 50 p, F11 @ HD / 50 i, F10 @ 4K / 60 p, F10 @ HD / 59.54 i at 2000 lx (White reflection 89.9 %)
S/N Ratio 4K -– T.B.A., Full HD 62 db (typ.)
Limiting Resolution 2000 TV lines (typ.) 4K / 60 p, 1000 TV lines (typ.) HD
ND Optical Filter Disc Clear, 1/4, 1/8, 1/16, 1/64
CC Optical Colour Compensation 3200 K, 4300 K, 6300 K; Cross, Option
Modulation Index 35% (typ.) @ 4K / 60 p, 60% (typ.) @ HD
DC Utility Power output UHK-430M: HR10A-4pin (x1): DC 12V 1.0A( max)
UHK-430S: D-Tap (x1) DC 12V 1.5A (max)
Dimensions / Weight (T.B.A.) W 148.5mm x H 243mm x D 340mm, 4.5kg
RATINGS / PERFORMANCE CCU-430
HDTV Output [BNC] 2CH 8 Output (3G/HD-SDI), Down-converted (1080p/1080i/720p)
3G-SDI (SMPTE 424/425 Level-A/B), 1920x1080:59.94P,50P,29.97P/PsF,25P/PsF,24P/PsF, 23.98P/PsF, 1920x1080:59.94I, 50I,
HD-SDI (SMPTE 292M), 1920x1080:59.94I, 50I, 1920x1080:29.97P/PsF, 25P/PsF,24P/PsF, 23.98P/PsF, 1280x720:59.94P,50P,
HIGH SPEED, 1920x1080:119.88P, 1920x1080:100p
Monitor Output [BNC] 2CH 2 Output (VF or PM Assignable )
HD-SDI (SMPTE 292M)
HD Trunk Video Output [BNC] 1x HD-SDI (SMPTE 292M) reflection 89.9 %)
Analog Output SYNC OUTPUT [BNC]: 1x Tri level sync (SMPTE 274)
Digital Audio Output 1x AES/EBU format [BNC] (SMPTE 276M)
Analog Audio Output +4dBs / 0dBs
2x XLR-3 (2 CH)
Tally Out PRC05-RB5F1, Female; Red/Green/Yellow
Communication D-sub 25P, Female, INTERCOM, PROD/ENG, 4W/RTS/CC, PROGRAM AUDIO
3 systems, TALLY IN, Red/Green/ Yellow
DC Utility Power output UHK-430 UHK-430M: HR10A-4pin (x1) :DC 12V 1.0A (max)
UHK-430S: D-Tap (x1) DC 12V 1.5A (max)
DC Utility Power output SE Interface QR/P4 24pin (x1)
DC Utility Power output DC Input XLR 4pin (x1)
DC Utility Power output USB Port USB2.0 Type-A
Data Trunk #1 D-sub 9P, Female, RS-422
Gigabit Ethernet Trunk LAN RJ-45 (1000BASE-T) (VTP CAT.5e)
I/F D-sub 15P, Female DATA TRUNK #2 (RS-422), Incom control, PREVIEW contact, System Control
Head Power on IND, DC 12V, 500mA OUTPUT
AC Inlet AC INLET / FUSE / MAIN POWER SWITCH / Noise Filter
SE interface Inlet QR/P4 24pin (x1) C
Inlet DC Input XLR 4pin (x1)
Inlet USB Port USB2.0 Type-A
Dimensions / Weight (T.B.A.) W 466mm x H 133mm x D 449mm / 18.5kg
