MLW-2750UHD
FUNCTIONS
RATINGS

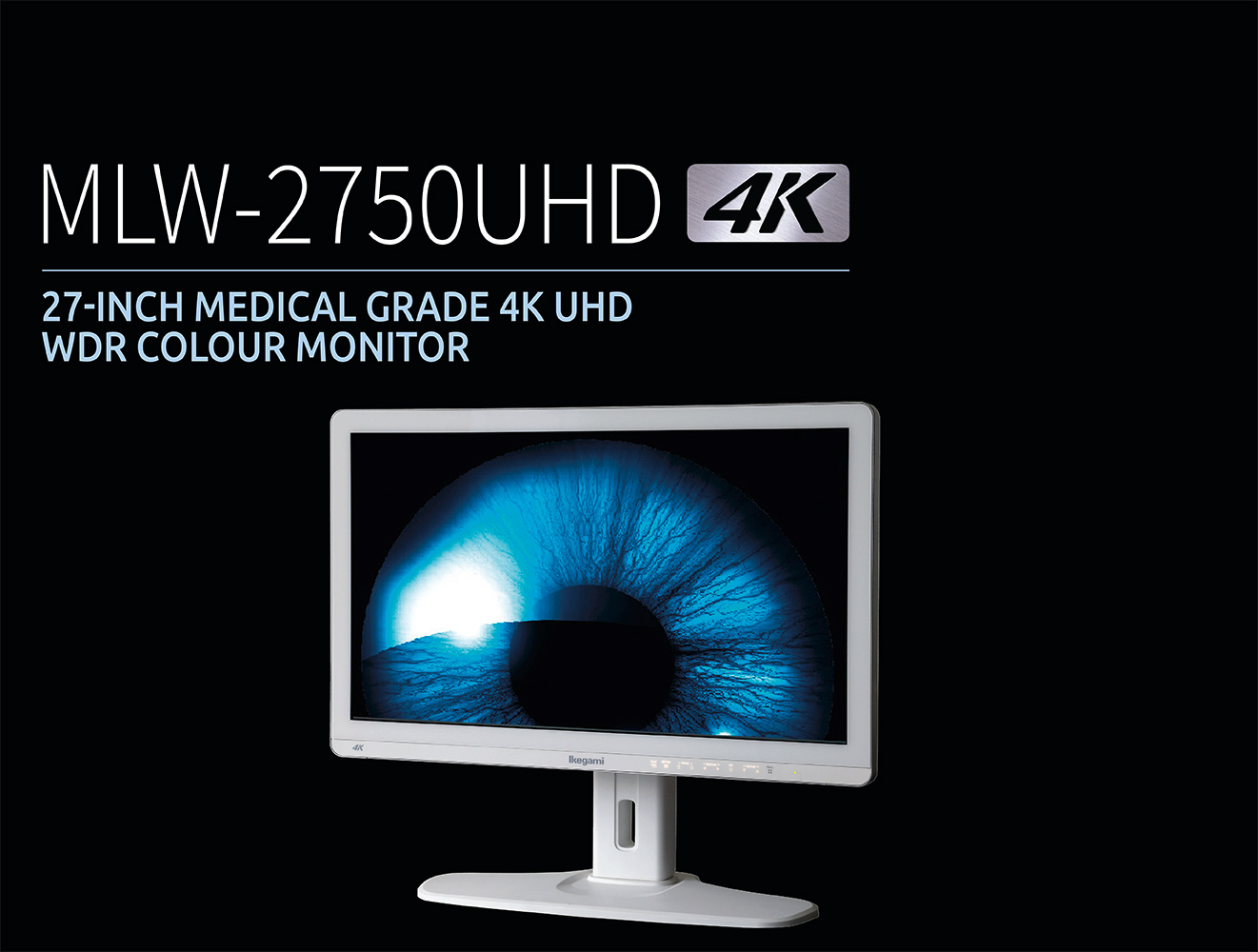

The new MLW-2750HD is a 27-inch 4K UHD display in a shallow-profile configuration fully optimised for use in operating rooms. With its 800 cd/m2 high brightness IPS 8 megapixel display panel, this new monitor improves the efficiency of medical teams by enabling precise observation of picture detail and allowing high quality picture-in-picture image presentation.

  • Fully compliant with medical safety directives

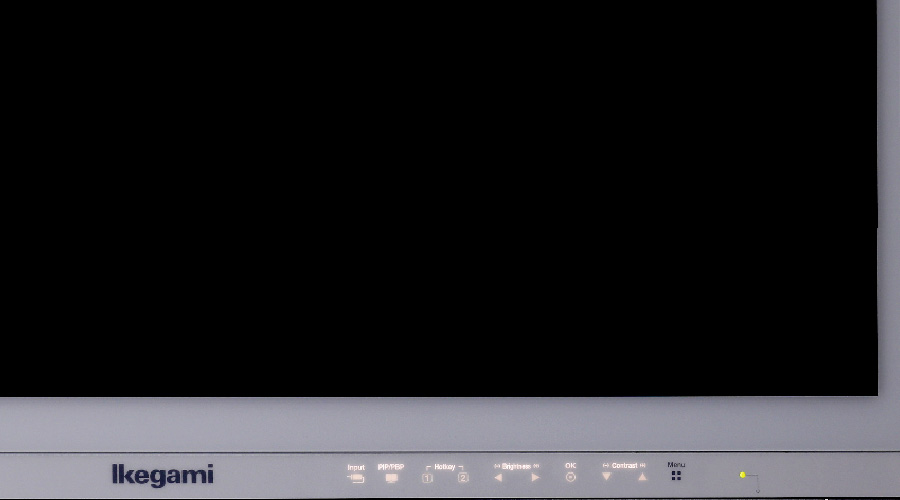

  • New full Flat design Front panel
  • New IPS Panel with LED backlight (800cd/m2)
  • 4K HDMI 2.0, DISPLAYPORT 1.2 and various interface options
  • Picture Enhancement Function
  • Picture Optimisation function
  • Multi display function
You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: medical@ikegami.de
Contact Form




PRESET FUNCTION

MLW-2750UHD has a user preset function allowing easy adjustment and storage of the display mode and image setup parameters.

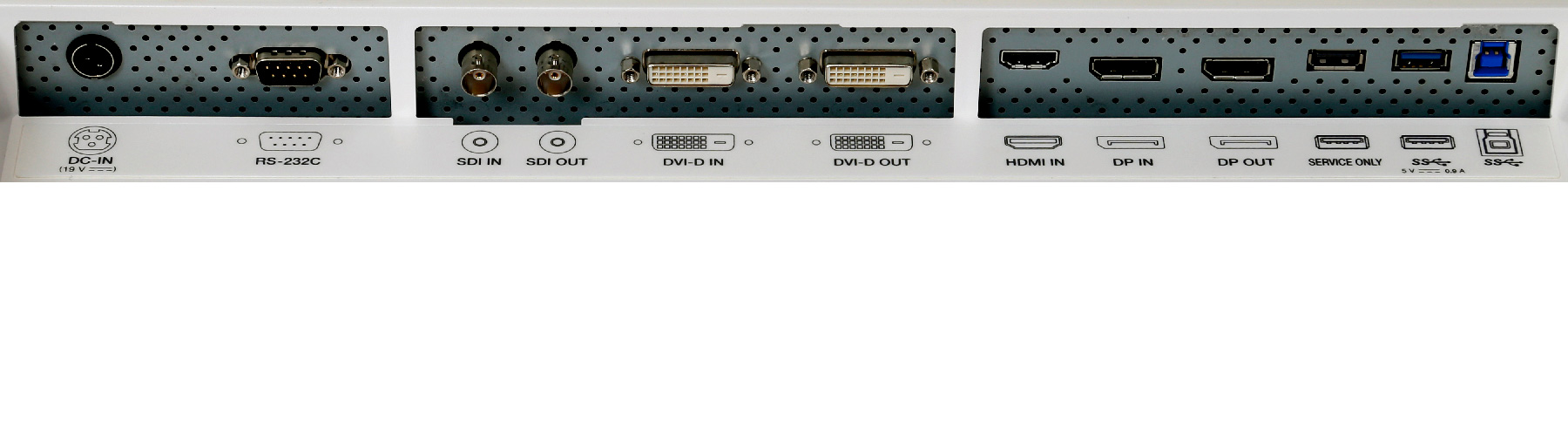

4K HDMI 2.0, DISPLAYPORT 1.2 AND VARIOUS INTERFACE OPTIONS

Fully compatible with HDMI2.0 and Displayport (Ver. 1.2) for UHD resolution (3840 x 2160) at 50/60Hz refresh rate.



PICTURE ENHANCEMENT FUNCTION

MLW-2750UHD ahs a Picture Enhancement Function delivering wide dynamic range reproduction of the video. This function ensures that high quality display extends both to dark and bright areas of the image.



PICTURE OPTIMISATION FUNCTION

Auto brightness/contrast stabilisation functions are included to ensure the most accurate and coinsistent shading possible for medical imaging. Gamma options and DICOM Part 1.4 can also be selected when required.



OUTSTANDING PICTURE QUALITY

MLW-2750UHD is fitted with an 800 cd/m2 high brightness IPS panel. The IPS display also provides accurate reproduction to achieve smooth image graduation well into the deep red section of the colour spectrum.



PICTURE AND PICTURE, SIDE BY SIDE

Two types of input images can be displayed simultaneously with Side-by-Side and Picture-in-picture display mode.



EASY TO USE

Weighting only 7.7kg (17Ib), the MLW-2750UHD offers the portability required for use in applications such as medical transport carts. Its IP352 rate (back) panels, give protection against dust and water during operations and post-operation cleaning.



USER SETTING MEMORY SWITCHING FUNCTION

Colors, brightness and other image quality-related settings are user-adjustable for eightdifferent groups. They are readily switchable.

up

RATINGS / PERFORMANCE MLW-2750UHD
LCD size 27-inch
Panel type IPS
Colour Gamut sRGB 115%
Colour Depth 10bit colour
Brightness 800 cd/㎡
Aspect Ratio 16:9
Resolution 3840 x 1080
View angle Horizontal : 178°, Vertical : 178°
Contrast ratio 1000:1
Response time 14ms
4K HDMI (2.0) 1ch
4K DisplayPort (1.2) 1ch, with loop-through
HD/PC 3G/HD-SDI 1ch, with loop-through
HD/PC DVI 1ch, with loop-through
USB RS-232C
Others 1ch, with loop-through
Cable Cover (Rear) Available
Power Input 100-240V, 50/60Hz
Power Consumption 120W
PIP Available
PBP Available
Safety FDA, MDD, Medical UL, cUL, CE, KC
Water, Dust proof (Front) IP35, (Rear) IP32
Weight 7.7kg
Dimensions 654.4 (W) x 410.9 (H) x 58 (D) mm
Monitor Fan Fanless
Standard Accessary Instruction manual, Power cable (2pcs), AC/DC adaptor, DisplayPort cable, HDMI cable
