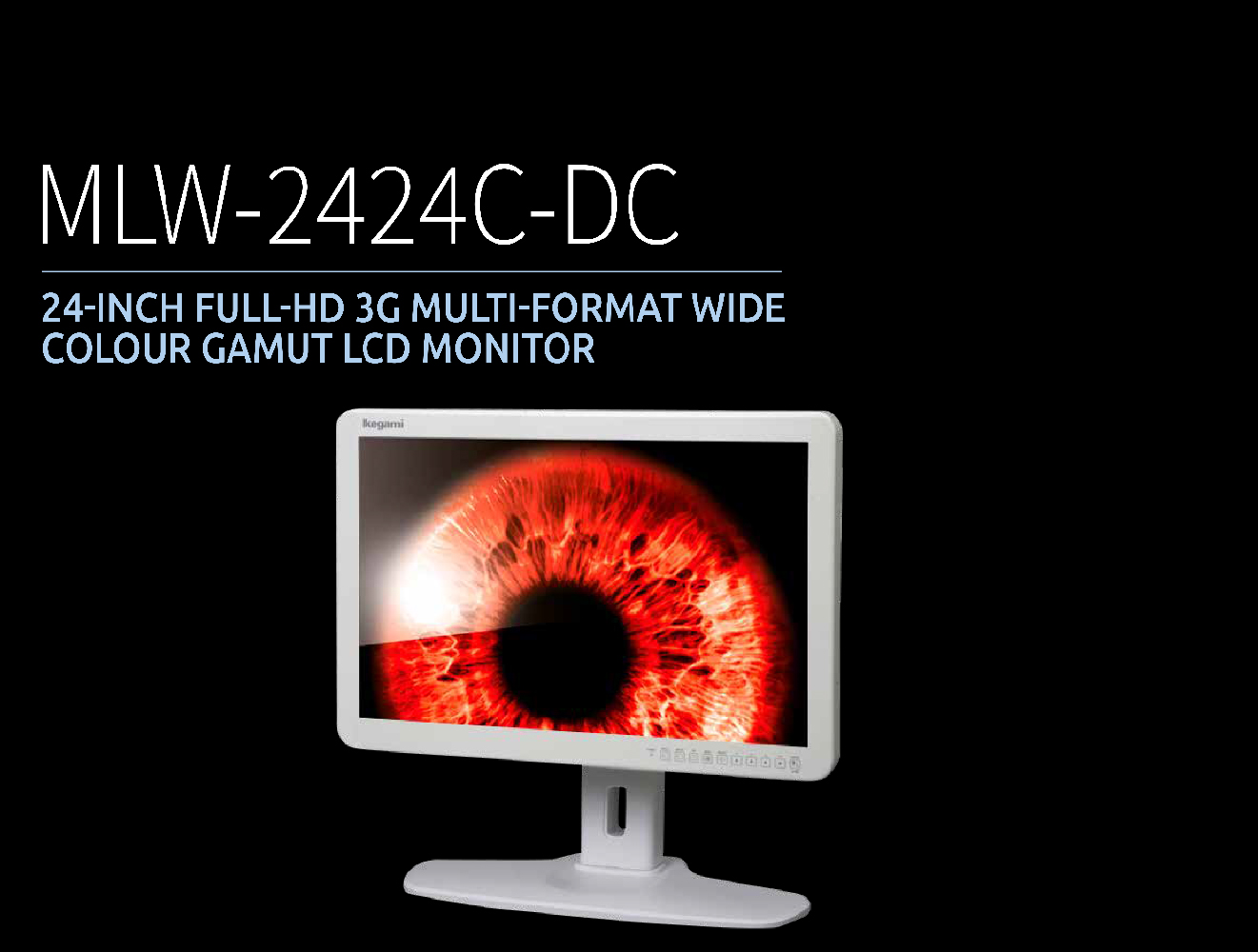

The MLW-2424C-DC is a 3G Multi-Format 24-inch LCD Monitor for specialist applications where high quality picture and true colour rendition with wide colour gamut are needed. Also, MLW-2424C-DC employs the touch switch control panel to improve the operability during operation.
- Fully compliant with medical safety directives
- Wider color gamut than EBU / AMPTE standard (102% NTSC)
- New Full Flat design for Front panel
- New IPS panel with LED backlight (400 cd/㎡)
- High Resolution, True color display (1.07 Billion Color gradient）
- Jaggy-less I / P Conversion Process
- Multiple Input and Format Capabilities
You want further information?
Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: medical@ikegami.de
Contact Form
12 BIT SIGNAL PROCESS ENGINE
12-bit signal processing based on Ikegami image processing technology allows the smooth gradation of colour.
10-BIT LCD PANEL
Further smooth colour gradation can be achieved by processing 10 bit signal from signal input to display.

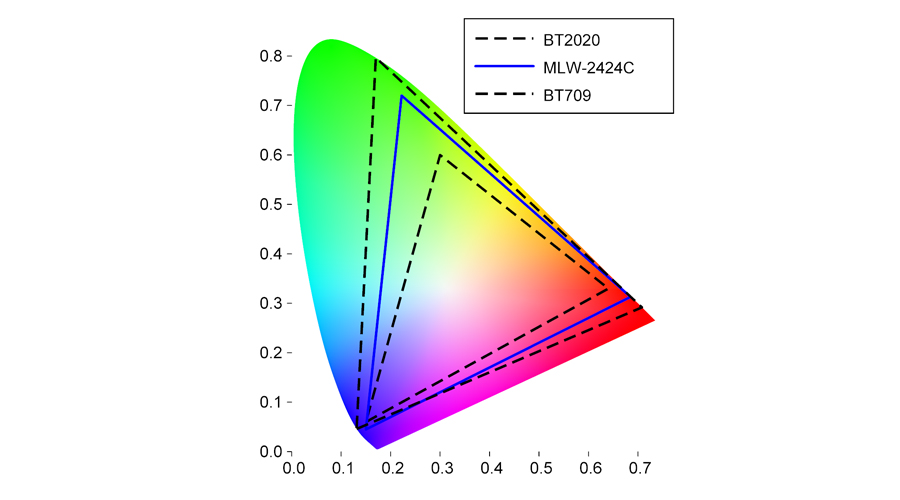

WIDE COLOUR GAMUT
Wide colour gamut can be represented with wider gamut than BT709/SMPTE standard. Colour gamut setting is selectable for user’s favorite.
178 DEGREES HIGH CONTRAST VIEWING ANGLE
LCD panel based on IPS technology is employed for 178 degrees high contrast viewing on UP/DOWN/LEFT/RIGHT. This characteristic prevents from intensity and colour shift by the viewing angle.
FLIP FUNCTION
Images can be flipped horizontally and vertically, allowing the correction of image inversion caused by the optics.
AUTOMATIC CONTRAST ADJUST FUNCTION
Based on brightness on the image, monitor will be able to expand each dinamic range of black and white automatically.
PICTURE AND PICTURE, SIDE BY SIDE
SDI signal input can be combine to show as P in P or Side by Side with other signal input (DVI-D, S-Video, Component, RGB or Video).
COLOUR TEMPERATURE SWITCHING FUNCTION
The color temperatures can be chosen from 6500K, 9300K and user settings to select acolor rendering to your taste.
USER SETTING MEMORY SWITCHING FUNCTION
Colors, brightness and other image quality-related settings are user-adjustable for eight different groups. They are readily switchable.
