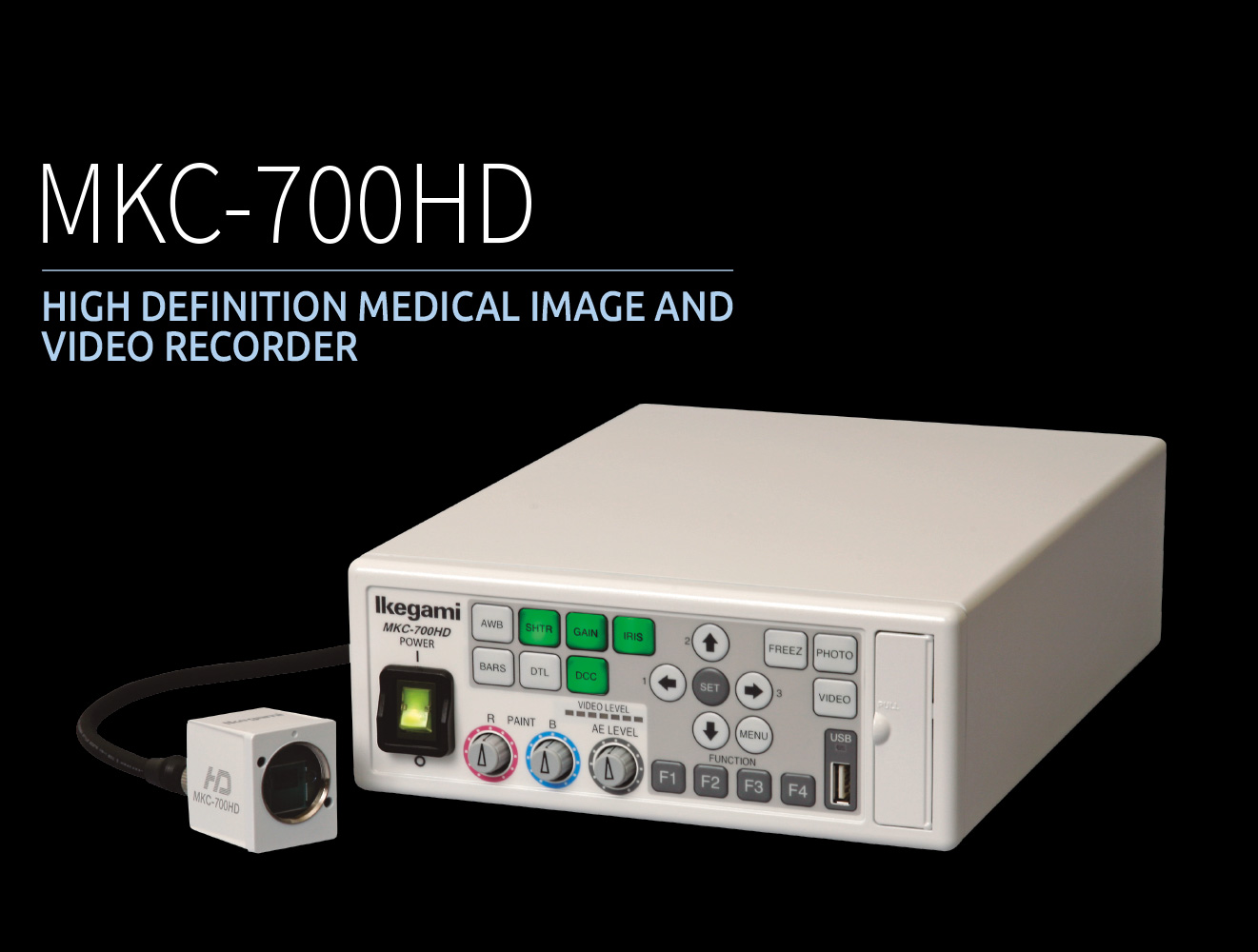

MKC-700HD
FUNCTIONS
RATINGS

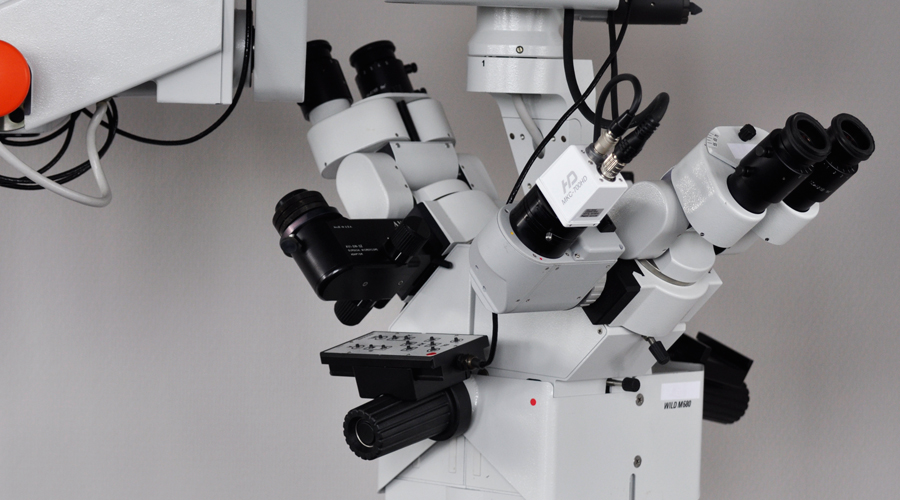

Ikegami has developed a new high-end medical grade camera which is used for surgical microscope, shadowless lamp, including the operative field camera system. It has a progressive scan Full-HD 3CMOS that can take advantage of a variety of medical situations.

  • High quality Image
  • High Sensitivity
  • Indocyanine Green (ICG) Mode
  • Full-HD 1920x1080 Video and still Image Recording
  • FTP Server Function for Downloading the File
  • Scene Files
  • Flip and Turn Function
  • Anti-biotic Coating
You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: medical@ikegami.de
Contact Form




up


SMALL SIZE OF CAMERA HEAD

The camera head employs the compact design on the sensor block with the special optics and achieves the small size (W34 x H40 x D40mm).



HIGH QUALITY IMAGE

The camera equips the latest 1/3-inch CMOS sensors and it performs 1000 TV lines horizontal resolution and 56dB of S /N ratio. The camera can provides a variety of signal output with analogue HD Y Pb Pr, digital HD-SDI, DVI digital (1920x1080 i/p) and SDTV signals (VBS, S-video and RGB).



HIGH SENSITIVITY

The camera offers the highest sensitivity on HDTV medical grade cameras with F16/2000lx. And it equips the high sensitivity mode and it performs the double of standard sensitivity.



INDOCYANINE GREEN (ICG) MODE

With the combination of Ikegami microscope adaptor, CVA-300RI, the camera can be used for ICG application.



FULL HD 1920 x 1080 VIDEO AND STILL IMAGE RECORDING

It is effective for the operation of a limited space. Because the CCU part of a small USB terminal is equipped, you can easily record video and still images in a general-purpose recording media



FTP SERVER FUNCTION FOR DOWNLOADING THE FILE

By connecting the unit to network, image file can be downloadable.



SCENE FILES

4 patterns of setting can be saved and loaded as scene files. It can be easily adapted according to the conditions. The scene files setting can be saved to an USB memory and loaded from it.



FLIP AND TURN FUNCTION

The captured images can be flipped horizontally and vertically. It is useful for the correction for the image inversion caused by the optics. It is controllable externally.



ANTI-BIOTIC COATING

The camera head and CCU utilizes an anti-biotic coating to help infection control.



ACCESSORIES

DUAL FOOT PEDAL

up

RATINGS / PERFORMANCE MKC-700HD
Scanning System 1920 x 1080 50 / 59.94 Progressive
Image Sensor 1/3-inch CMOS
Lens Mount C-mount
Limiting Resolution 1000 TV Lines
Sensitivity 2000 lx F16/ 3200°K
S / N 56 dB (Gamma / Detail OFF)
GAIN Up to 18 dB
Output signal HDTV HD-SDI BNC 2ch
  DVI (1920 x 1080 i / p) 1ch
Output Signal SDTV Composite (VBS) BNC 1ch
  S-Video S-terminal 1ch
Output Signal IP Ethernet RJ45 1ch 
SD card interface Available (IP Ethernet option board)
Camera cable Multi-core cable 5m + 10m
DC Iris Control Available (from CCU)
External Control RS-232C 1ch
Operating Temperature 0°C to +40° C
Power Requirement DC 12V ±10 %
Weight Camera Head: less than 100g; CCU: less than 3kg
Dimensions Camera Head: W34 x W40 x D40 mm; CCU W210 x H80 x D270 mm
