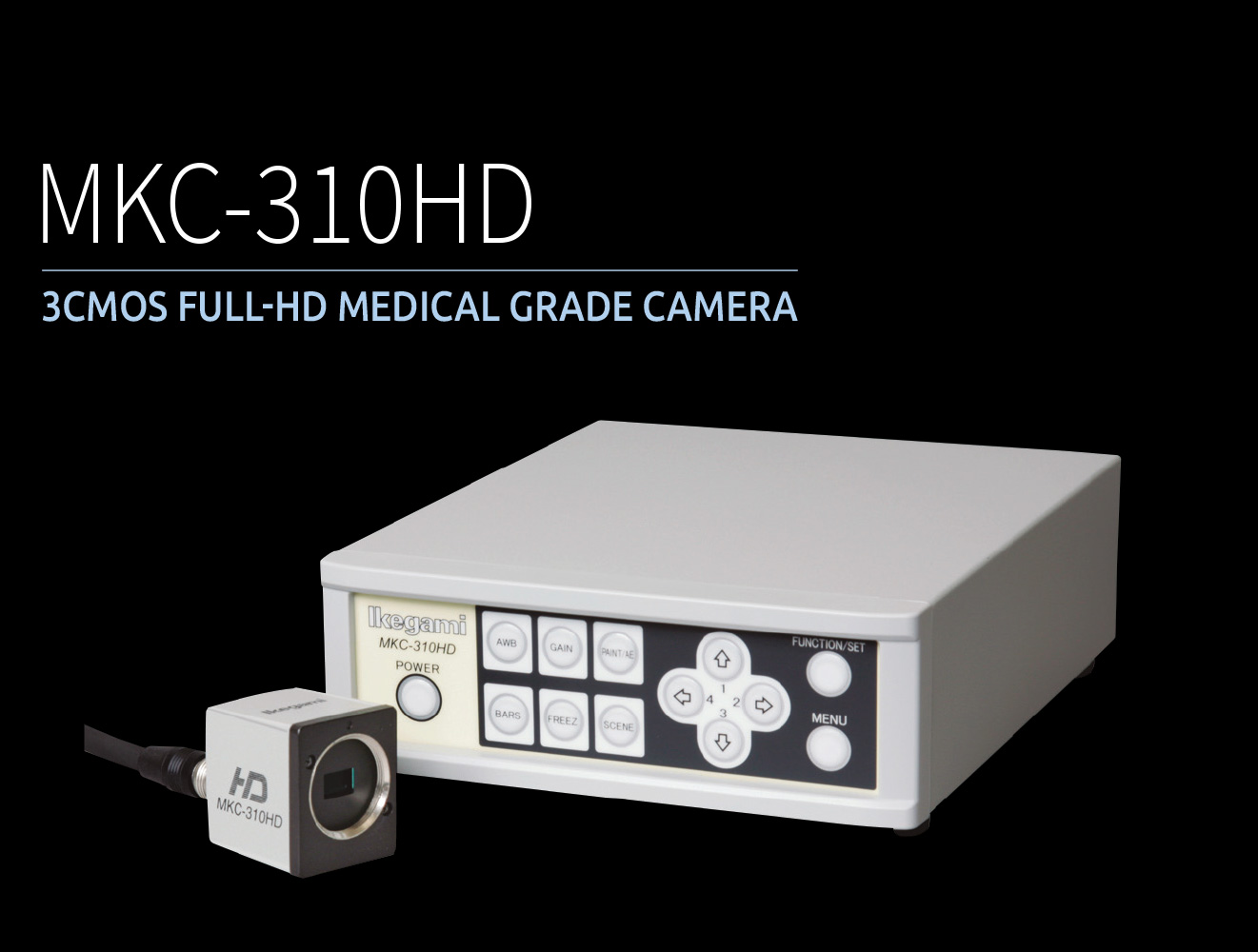

The MKC-310HD employs 3 x 2.1Megapixel Full-HD 1/3-inch CMOS Sensor to provide 1000 lines of high definition video images through 3G-SDI output interface, coupled with High Sensitivity performance of F10/2000 lux providing the optimal video quality required for special applications.

  • 3 Chip CMOS progressive Image Sensor
  • 1/3-inch Full-HD (1920x1080)

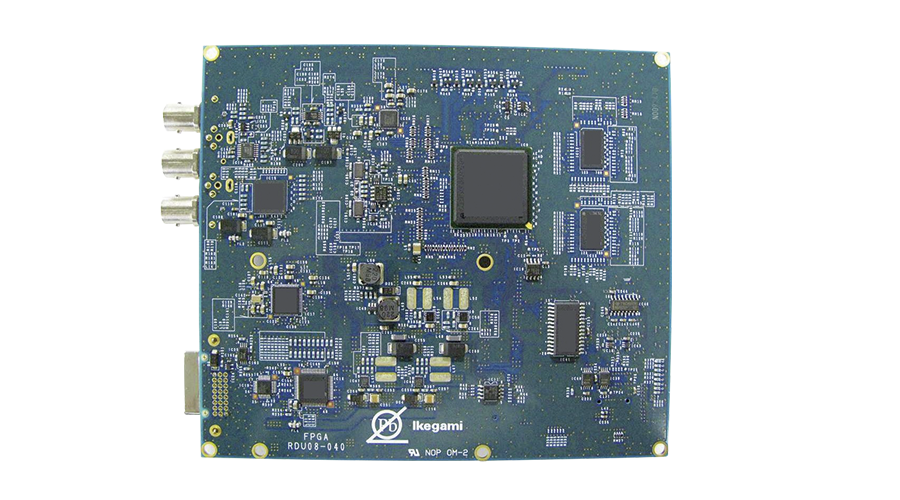

  • FPGA based
  • High Resolution: Horizontal 1000 TV Lines, S/N 54dB
  • High Sensitivity: F10 at 2000 lux

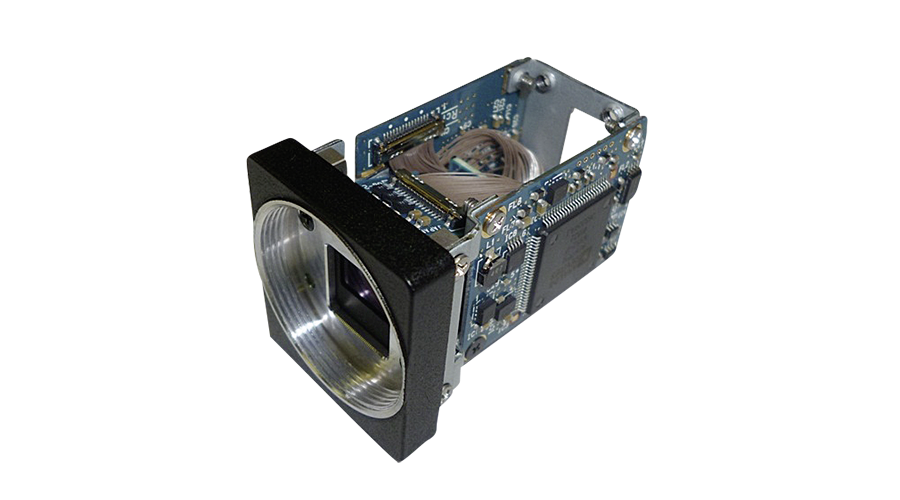

  • Ultra Compact Camera Head: W34xH40D40mm
  • Digital output: 3G HD-SDI 1080P
  • OEM Possibility
You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
Contact Form

Scanning System 1920 x 1080 50 / 59.94 Progressive

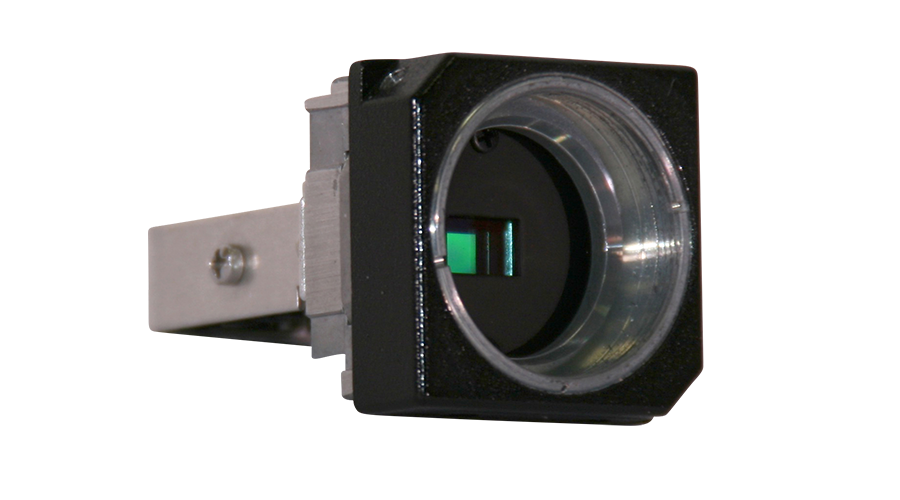

Image Sensor 1/3-inch 3 CMOS
Lens Mount C-mount
Limiting Resolution 1000 TV Lines
Sensitivity 2000 lx F10 /  3200 °K
S/N Ratio 54 dB (Gamma / Detail OFF)
GAIN 0 dB, +6 dB, +12 dB, +18 dB, +24 dB, +30 dB
Output Signal HDTV 3G / HD-SDI BNC 2 ch
  DVI (1920 x 1080 i / p) 1 ch (2nd Output as Option)
  Genlock BNC 1 ch, Sync Output BNC 1 ch
Output Signal SDTV Composite (VBS) BNC 1 ch
  S-Video S-Terminal 1 ch
Output Signal IP Ethernet RJ45 1 ch (Option)
SD card Interface Available (IP Ethernet Option Board)
Camera Cable 5 m or 7 m single (selectable depending on the Compositing)
DC Iris Control Available (from CCU)
External Control RS-232C 1 ch
Operating Temperature 0° C to +40 ° C
Power Requirement DC 12 V ±10 %
Weight Camera Head: 100 g; CCU: 1.1 kg
Dimensions Camera Head: W34 x H40 x D40 mm, CCU: W170 x H58 x D200 mm
Compliance with medical safety standards Compliance with medical safety standards:
This product is distributed in the EU as a medical product and complies with the relevant product safety standards (e.g. IEC 60601-1).
* For more information, please contact our European headquarters or your Ikegami distributor.
