HEM-2570W
FUNCTIONS
RATINGS

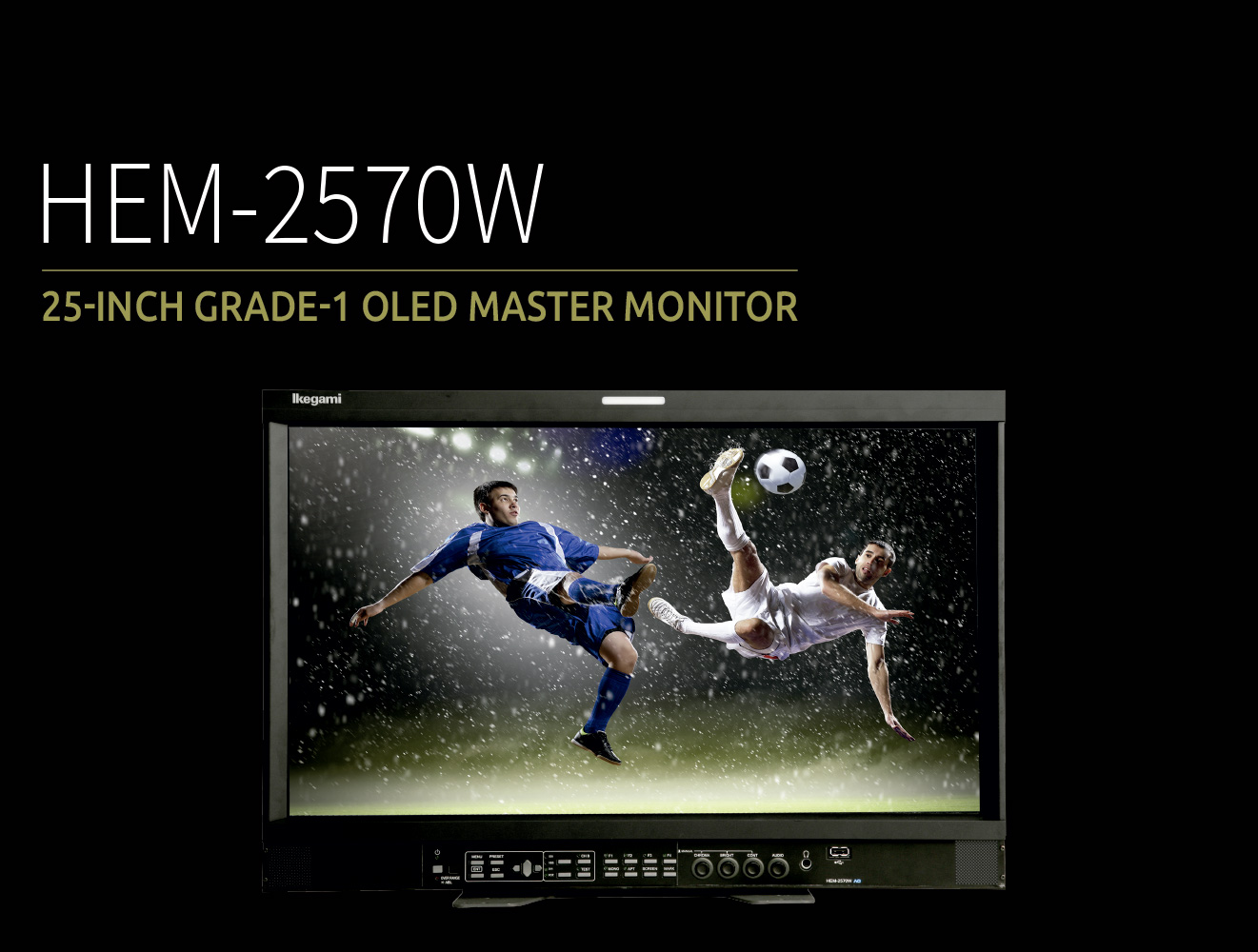

The HEM-2570W is a Grade-1 OLED Monitor. Hi-Performance OLED panel and 12-Bit Display engine contributes to the characteristics of this Monitor, i.e. truer colour reproduction, deeper black and blur free motion pictures. ASP-100 Auto set-up probe can easily adjust and maintain the accurate colour reproduction.

  • 10 Patterns x10 Scenes for User Markers
  • USB Terminal for auto Setup & Saving Images
  • Audio Speakers & Headphone Terminal
  • Adjustable CRT Gamma
  • Embedded Audio Levelmeter
  • Audio Levelmeter
  • User Marker Display Function
  • Dot-by-Dot Display Function
  • External Memory Function
  • Shadow Function
  • USB Mouse Control
  • Display Comparison Function
  • Downmix Function
  • 2x / 4x Zoom Function
  • Image and Test Signal Mix
  • Remote Control
  • Built-in Test Signal Function
  • WFM/Vector Scope Display
  • White Balance Adjustment Assist
  • Time Code Display Function
  • Closed Caption
You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: broadcast@ikegami.de
Contact Form



up


ACCESSORIES

  • ASP-100 Auto Setup Probe
  • RCT-30A Infrared Remote Controller
  • SRC-400
  • Serial Remote Controller
  • SP-70 SFP Module
  • CM-70 Component & PC-RGB Input module
  • RS-2450T Rackmount Adaptor
  • GR-1770 Grip
  • CC-E25 Hard Carrying Case
up

RATINGS / PERFORMANCE HEM-2570W
Screen size 24.5-inch
Screen Resolution Full HD (16:9) 1920 x 1080
Brightness 250cd/m2
Contrast Ratio (typ) 5000:1
Colour Depth 1.07 Billion (RGB 10-Bit)
View Angle (Vertical / Horizontal, typ) 178° H / V
Power Requirement AC 100 - 240V
Power Requirement DC (XLR 4-pin D Cinlet) 12V
Power Consumption Average 88W, max. 135W
Dimensions (W x H x D) W 585mm x H 398mm x D 102mm
Weight (Approx.) 10.0kg
Video Input/Output
Multi SDI (incl. 3G-SDI) 2 inputs / 1 output
VBS 2 inputs / 2 outputs
RGB/YPbPr 1 input (Option)
Analog PC 1 input (Option)
DVI-D 1 input
HDMI 1 input (Option)
SFP Module 1 input (Option) SP-70
Display Features
WFM available
Vector scope available
Split screen available
Dot by Dot available
Interlace scan available
