HDL-23
FUNCTIONS
RATINGS

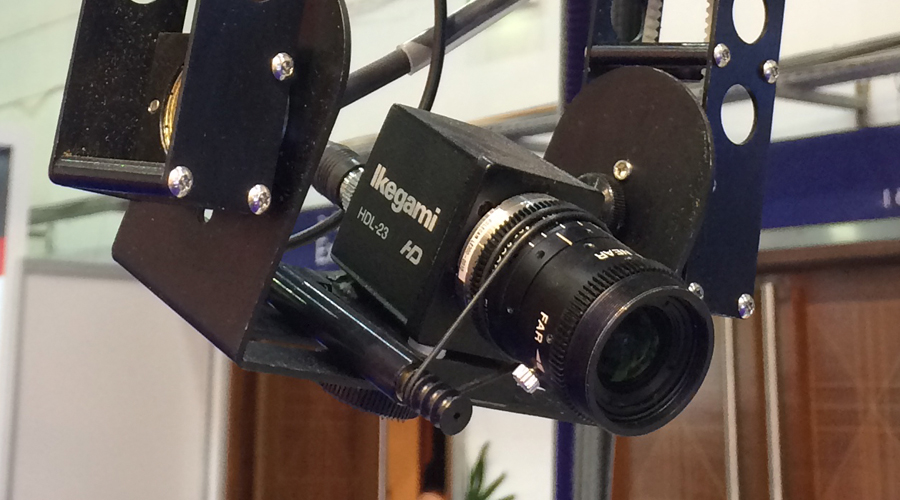

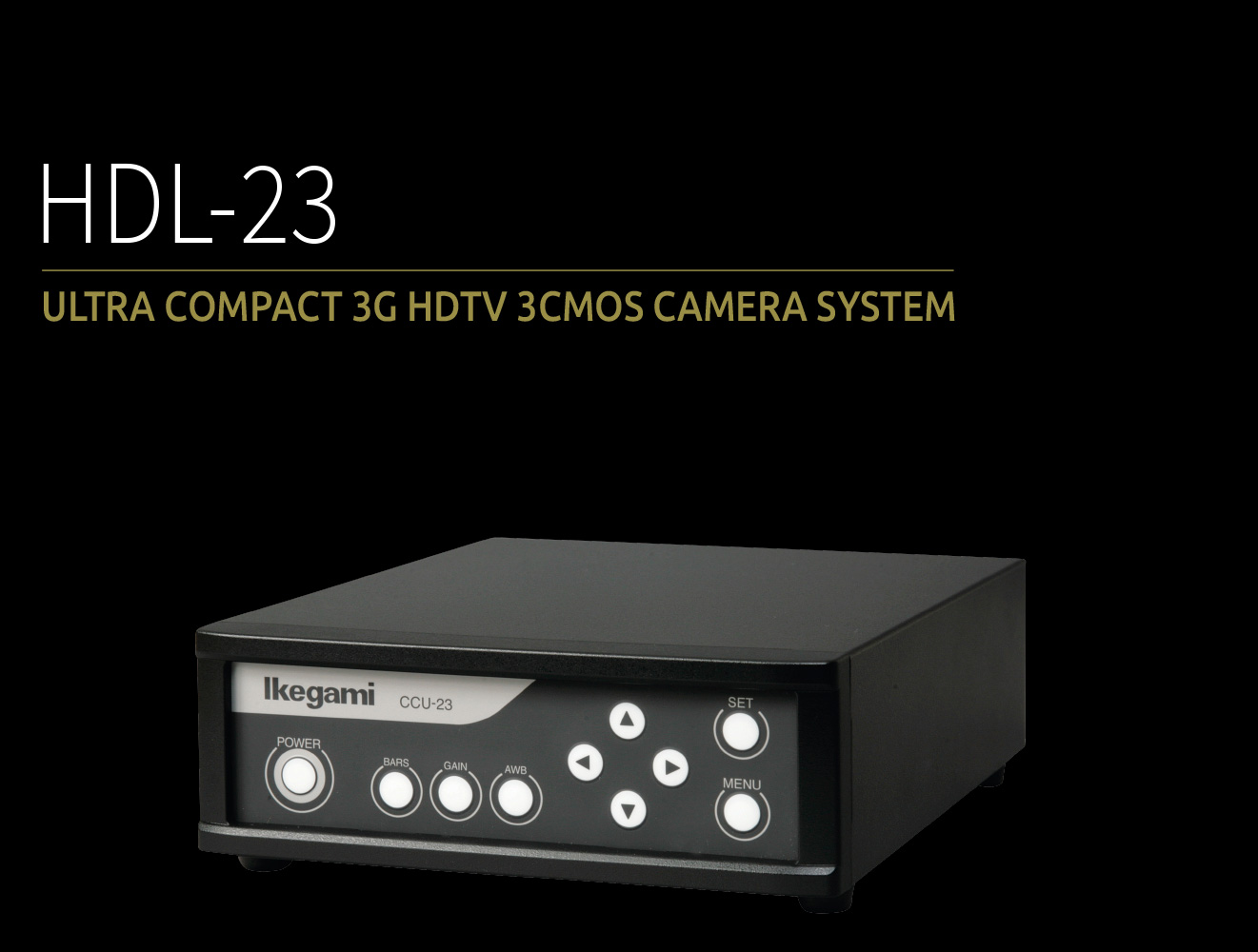

The HDL-23 is a subminiature HDTV Camera with progressive 3CMOS sensors, providing native 1080p/50 HDTV picture with superb colour reproduction.

  • 1/3”-inch 3 CMOS Sensor
  • Multiple Output Interfaces
  • Multi-Format Support
  • 3G 1080P50 capable
  • Compact & small
  • Camera Head Size: W34xH40xD40mm
  • Auto Video Level Control
  • Column Adding
  • Broadcast Remote Control Protocol
  • IP Encoder Output (Option)
  • Adjustable Scene Files
You want further information?

Feel free to contact us.
Service-Hotline: +49 (0) 2131 1230
E-Mail: broadcast@ikegami.de
Contact Form



RELATED ITEMS


up


1/3-INCH PROGRESSIVE 3 CMOS SENSOR

1920 x1080 progressive CMOS sensor achieve 1000TVL horizontal resolution, F10 sensitivity and 54dB SNR.



MULTI OUTPUT

HD/SD-SDI, DVI-D, SDTV outputs are available as standard.



OPERATION WITH IKEGAMI OCPs

The CCU is equipped with a standard CPA Connector for Ikegami Broadcast OCPs. Various control items are available.



IP ENCODER OUTPUT (OPTION)

With the optional IP Encoder, H.264 motion picture with variable frame rate (7 preset steps) and Still picture (JPEG, 1920 x 1080 dots) can output as data stream from Ethernet port.

up

RATINGS / PERFORMANCE HDL-23
Scanning System 1920 x 1080 progressive
Optical System 1/3-inch 3CMOS Sensor
Lens Mount C-Mount
Power Requirement +12 V DC
Power Consumption Approx. 20 W
Remote Control Ikegami standard OCPs (OCP-200 / OCP-100 / RM-51A)
Ambient Temperature 0 ° C to +40 °C
Max. Cable Length 15 m (standard: 5 m)
Dimensions Head: W 34 x H 40 x D 40 mm approx.
CCU: W 170 x H 58 x D 200 mm approx.
Weight Head: Less than 0.1 kg
CCU: Less than 3 kg
Sensitivity F10 at 2000 lx, 3200 K
SNR 54 dB
Limiting Resolution 1000 TVL
HD-SDI 1080 i / 50 Hz, 59.94 Hz 0.8 Vp-p / 75 Ω x 2 ch
DVI 1920 x 1080 p / 50 Hz, 59.94 Hz x 1 ch
HDMI (Option) 1920 x 1080 p / 50 Hz, 59.94 Hz x 1 ch
SD-VBS 1.0 Vp-p / 75 Ω x 1 ch
SD-Y/C Y : VS1.0 Vp-p / 75 Ω x 1 ch
C : 0.286 Vp-p / 75 Ω
Network Mode 10 Base-T or 100 Base-TX
Motion Picture (H.264) Profile Data rate: 512 k - 12 M bps
Frame rate: 25/ 12/ 8/ 5/ 3/ 2/1 fps
Still Picture (JPEG) 1920 x 1080 or 1280 x 720 pixels
DOWNLOAD PRODUCT BROCHURE (1.8 MiB)
DOWNLOAD CATALOGUE BROADCAST CAMERAS 2017-2018 (2.6 MiB)
DOWNLOAD RATINGS/PERFORMANCE (2.1 MiB)
