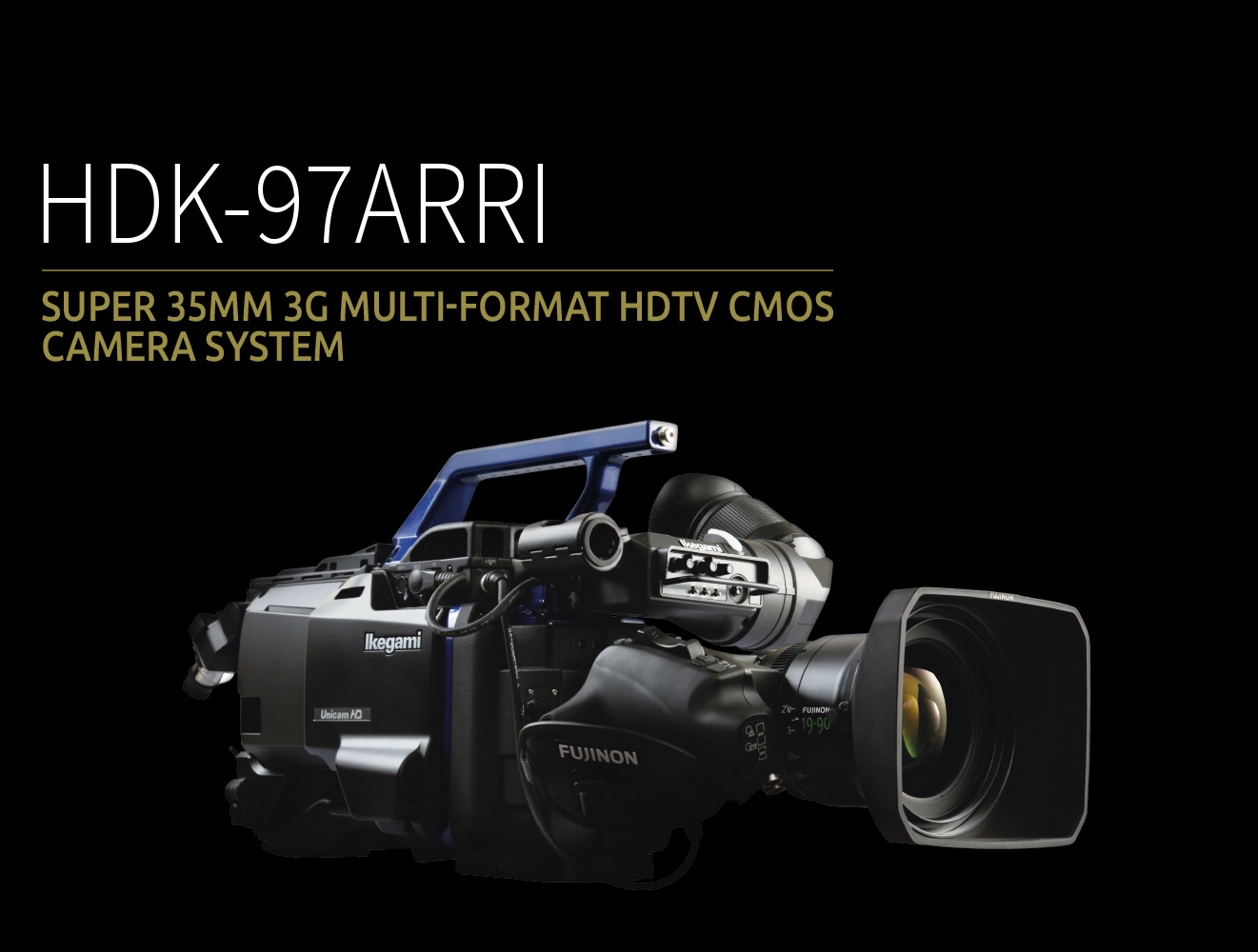

HDK-97ARRI
FUNCTIONS
RATINGS


The HDK-97ARRI offers a unique convergence of attributes, designed with the latest innovations. The ARRI Large-format front end is famed for its film-like, organic look characterized by extended, clean highlights, an extremely low noise floor, natural skin tones, excellent colour separation and cinematic depth-of field. Employing large pixels and a custom-designed read-out architecture, this definitely acclaimed 35 mm CMOS Sensor demonstrates exceptional dynamic range. In addition, ARRI’s stainless steel lens mount system ensures super stable flange focal depth between lens and sensor.

  • Super 35 mm CMOS Large Sensor
  • PL Lens Mount
  • Docking style Camera Head
  • Standard B4 Lens mountable
  • Custom Gamma Correction
  • Motorized ND-Filter
  • Full compatibility with all Unicam HD Systems
  • ARRI and Ikegami Collaboration
  • Superior real time processing and image controls
  • Shallow depth of field
  • High Sensitivity – Low Noise – Expanded dynamic Range – Superior Resolution
  • Supports all existing HDTV Formats
